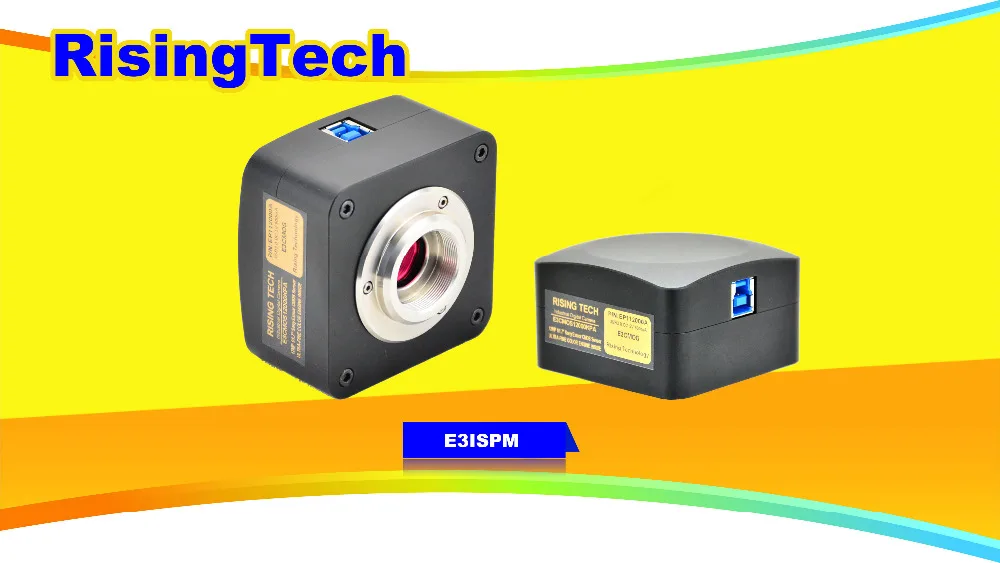

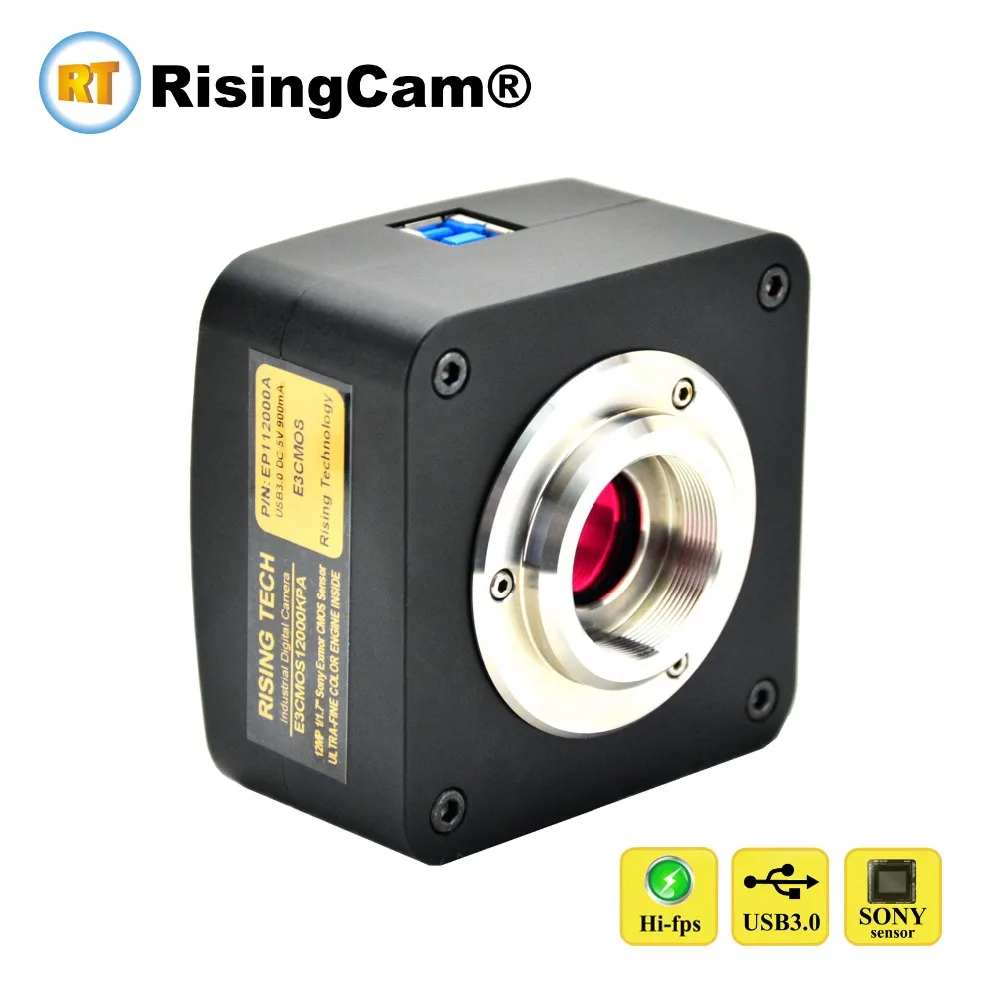

RisingCam камера для микроскопа E3ISPM 6300

High frame rate 30pfs 6.3MP USB3.0 Microscope Camera With IMX178 Sony Sensor

5.0

Цена: 33 400 — 38 054 ₽
В избранное
В корзину Купить на AliExpress (цена могла измениться)
#0 #1 #2 #3 #4 #5 #6

Характеристики

  • Название бренда:RisingCam
  • Номер модели:E3ISPM 6300
  • Происхождение:Китай
  • Материал:Алюминий
  • Основы:microscope camera
  • Особенности:Цифровой
  • Выдвижной тубус:Тринокуляр
  • Коэффициент увеличения:500X и Под
  • Единица измерения:штука/штуки
  • Количество:1
  • Аккумулятор входит в комплект:no
  • Sensor:IMX178 SONY Exmor CMOS sensor
  • Resolution:6.3MP
  • Interface:USB3.0
  • Application:fluorescence image
  • housing material:Integrated zinc aluminum alloy housing
  • Software:RisingView
  • Support:Windows/Linux/Mac OS
  • Power Supply:DC 5V over PC USB Port
  • sensor size:1/1.8" (8.92mm)
  • Sensor Sensitivity:425mv with 1/30s

Отзывы

  • 5.0
    Анонимный пользователь 9 января 2023
    Хорошее качество, быстрая доставка, очень хорошая
  • 5.0
    Анонимный пользователь 9 января 2023
    Спасибо за доставку, быстрый и быстрый ответ.
  • 5.0
    bylee u. 31 октября 2024
    Спасибо за быструю доставку.-
  • 5.0
    bylee u. 2 октября 2024
    Спасибо за быструю доставку.
  • 5.0
    bylee u. 12 сентября 2024
    Спасибо за быструю доставку.
  • 5.0
    bylee u. 9 сентября 2024
    Спасибо за быструю доставку.
  • 5.0
    bylee u. 4 сентября 2024
    Спасибо за быструю доставку.
  • 5.0
    bylee u. 28 августа 2024
    Спасибо за быструю доставку.

Описание


High frame rate 59fps 30fps 6.3MP SONY imx178 USB3.0 Microscope Camera for trinocular microscope


Model No: E3ISPM 6300

E3ISPM  Camera Instruction

E3ISPM adopt SONY Exmor CMOS sensor as the image-picking deviceand USB3.0 is used as the transfer interface.

E3ISPM hardware resolutions 6.3mp and come with the integrated CNC aluminum alloy compact housing.

This camera  integrated with 8/10bits bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTMHISPVP) for Demosaic, Adjustments,Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.

E3ISPM comes with advanced video & image processing application RisingView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The E3ISPM can be widely used in brightfieldlight environment and microscopeimage capture and analysis with higher frame rate.


E3ISPM  Camera Feature

SONY Exmor imx178 CMOS sensor with USB3.0 interface;

High frame:

E3ISPM 6300KPA: 30fps@3072x2048 38fps@1536x1024

E3ISPM 6300KPB is upgrade one which add DDR (Double Data Rate), 59fps@3072x2048

Real-time 8/10 bit depth switch;  it support RGB24, RGB48 and RAW

Ultra low noise and low power dissipation by using column-parallel A/D conversion;

With hardware resolution 6.3MP;

Standard C-Mount camera;

Integrated zinc aluminum alloy housing;

USB3.0 5 Gbps interface ensuring high frame rate;

With advanced video & image processing application RisingView;



E3ISPM  Camera Specification

Model no

Sensor& Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure

Dark Signal

E3ISPM 6300KPA

6.3MP/IMX178(C)

2.4x2.4

425mv with 1/30s

30fps@3072x2048

  1x1

0.02ms--15s

1/1.8" (8.92mm)

0.15mv with 1/30s

38fps@1536x1024

  2x2








E3ISPM  6300KPB (DDR)

  6.3MP/IMX178(C)

2.4x2.4

425mv with 1/30s

59fps@3072x2048

  1x1

0.02ms--15s

  1/1.8" (8.92mm)

0.15mv with 1/30s

59fps@1536x1024

  2x2

C: Color


NOTE:

E3ISPM 6300KPB is upgrade one which add DDR (Double Data Rate) 59fps@3072x2048


OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine



Recording System

Still Picture and Movie

Cooling System*

Natural

OPERATING ENVIRONMENT

Operating Temperature

-10C--50C

Storage Temperature

-20C--60C

Operating Humidity

30--80%RH

Storage Humidity

10--60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)

OS X (Mac OS X), Linux  (Note:  RisingView for MAC and Linux are Simple Version without Measurement and Image Process function)

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM

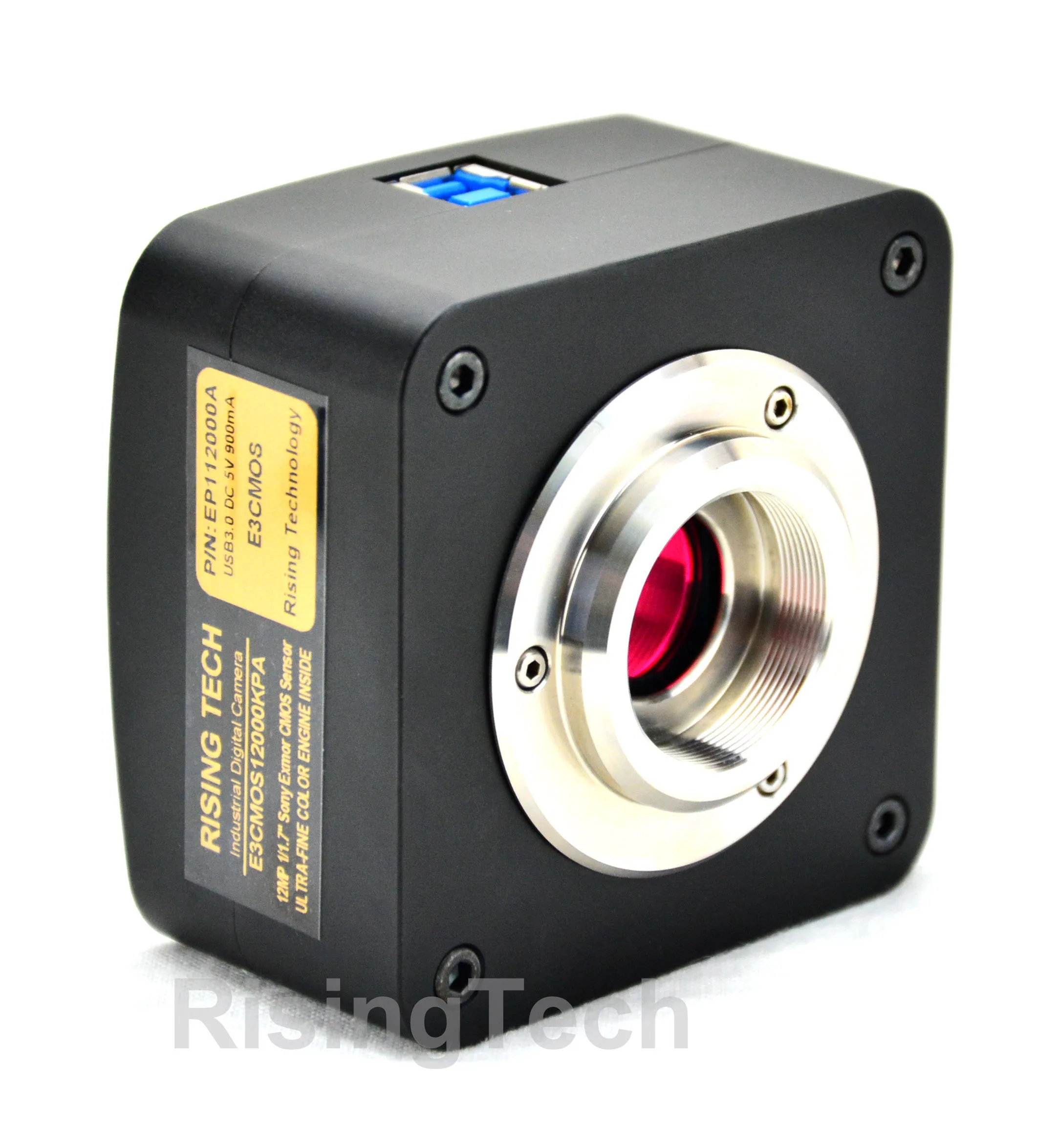

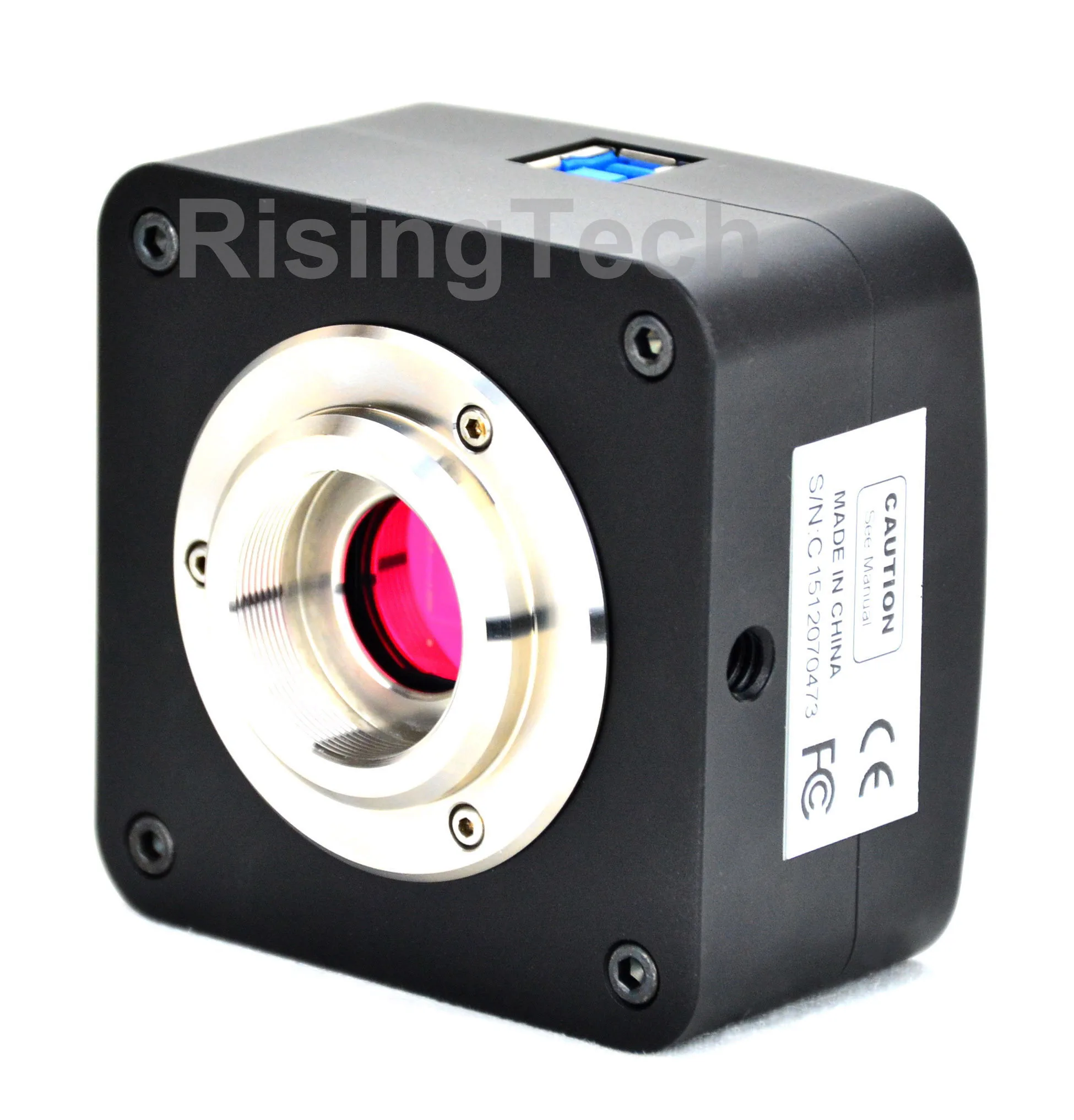

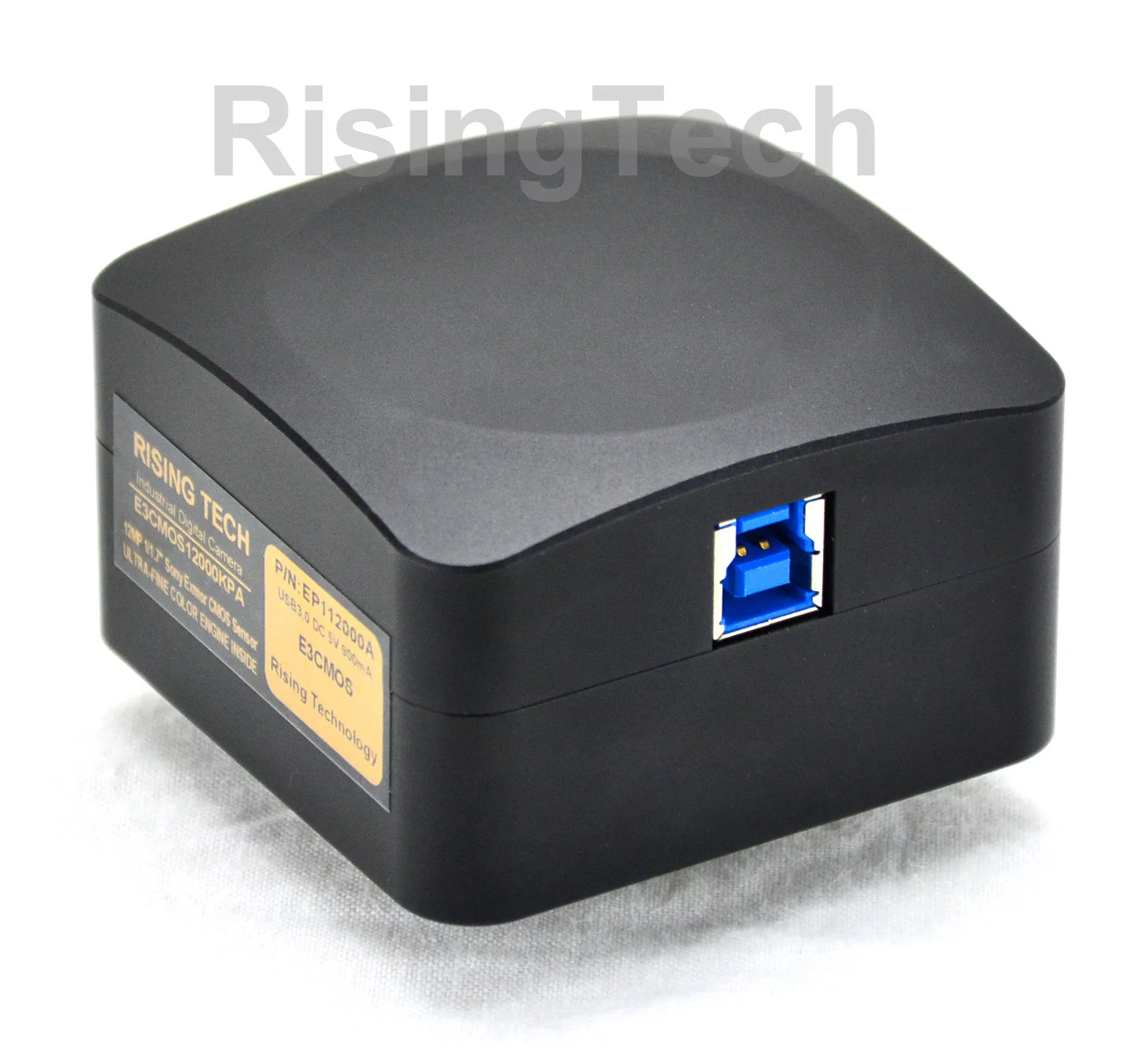

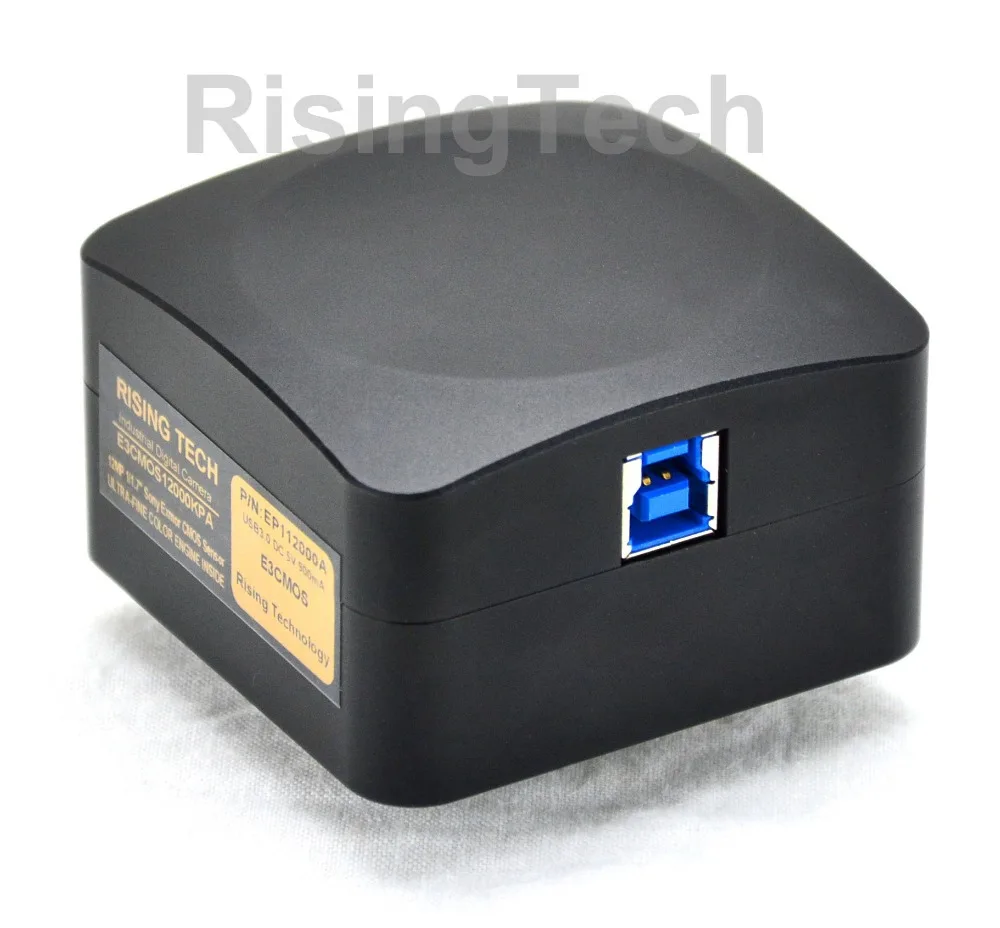

E3ISPM  Camera Pictures

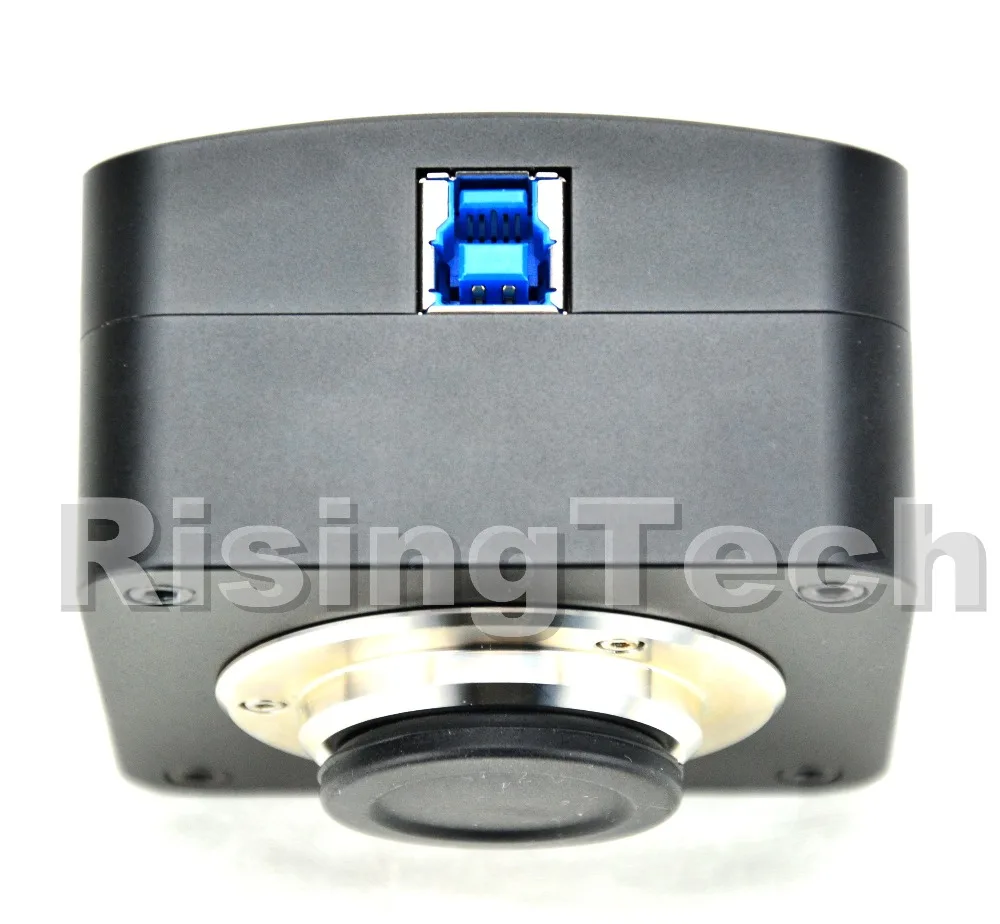

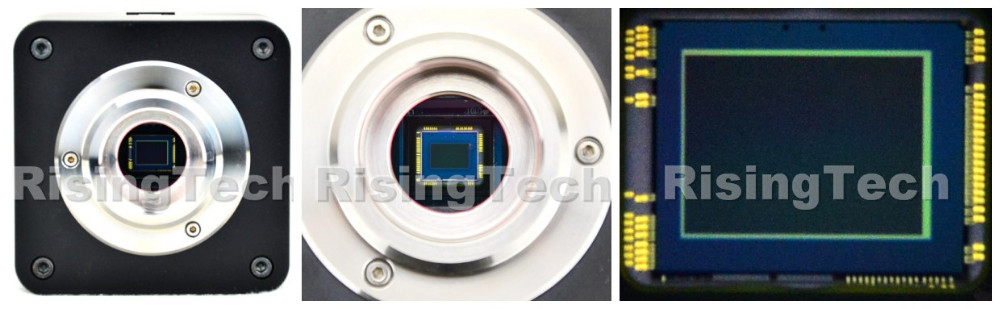

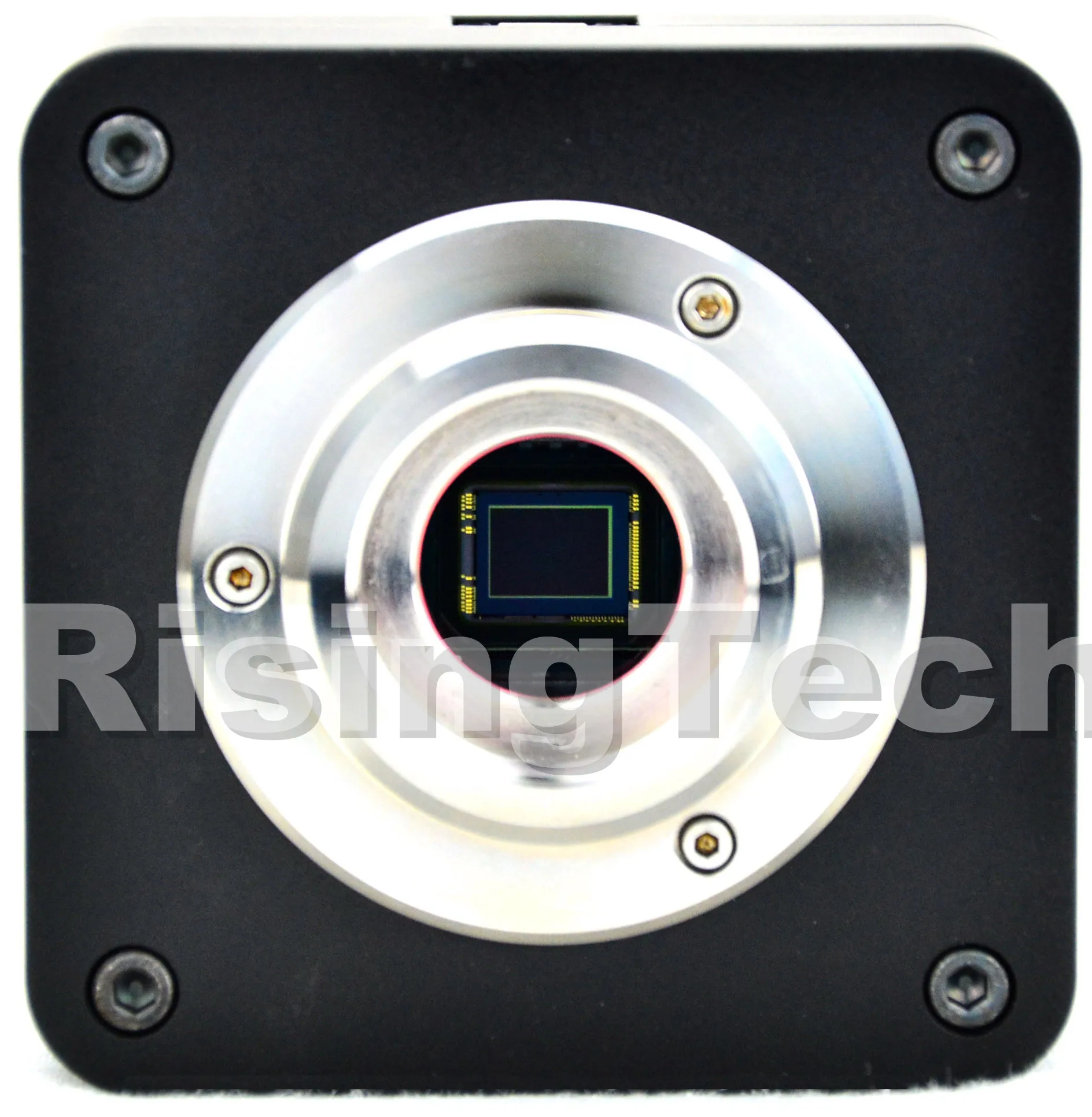

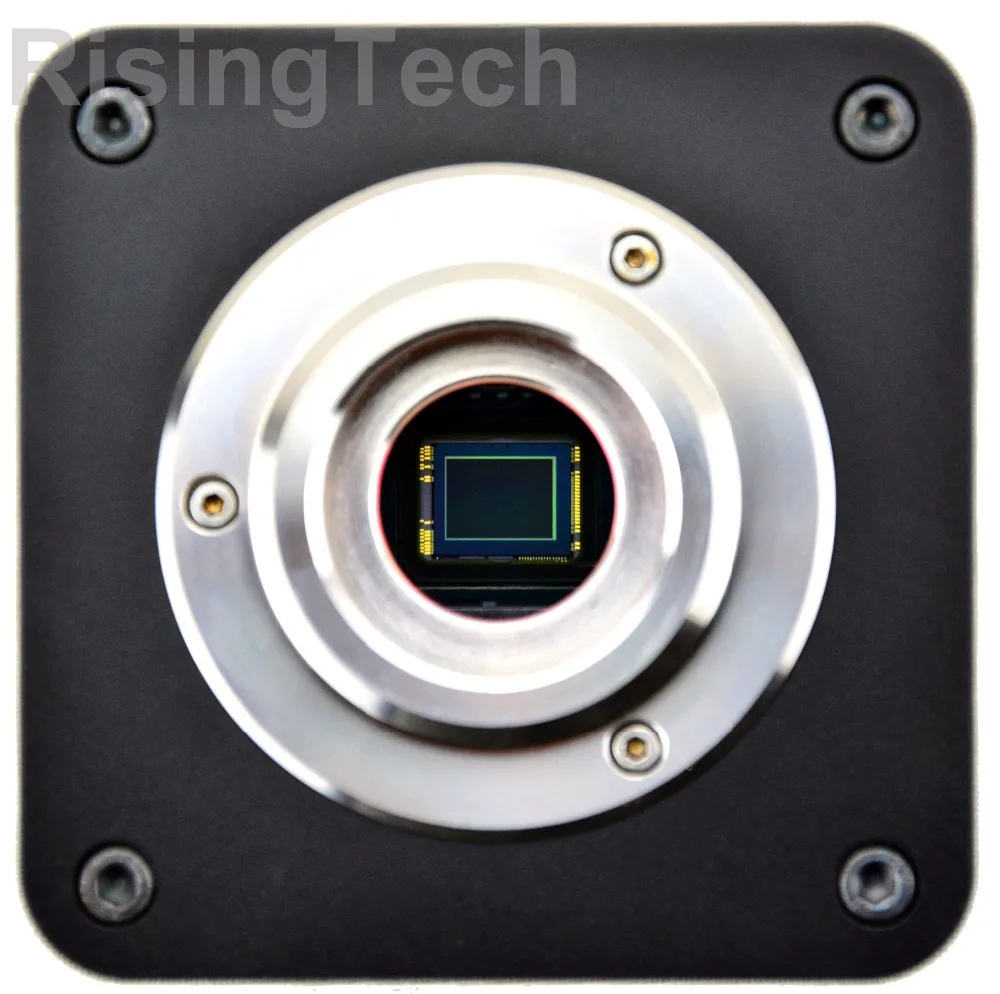

E3ISPM 6300 camera install SONY IMX178 sensor

E3ISPM integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTMHISPVP) for Demosaic, Adjustments,Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.

ISP make camera has high frame, Max 38fps,  DDR upgrade camera reach 59fps

E3ISPM 6300KPA: 30fps@3072x2048 38fps@1536x1024

E3ISPM 6300KPB is upgrade one which add DDR (Double Data Rate), 59fps@3072x2048


SONY Exmor COMS sensor

1) Low noise and High Sensitivity

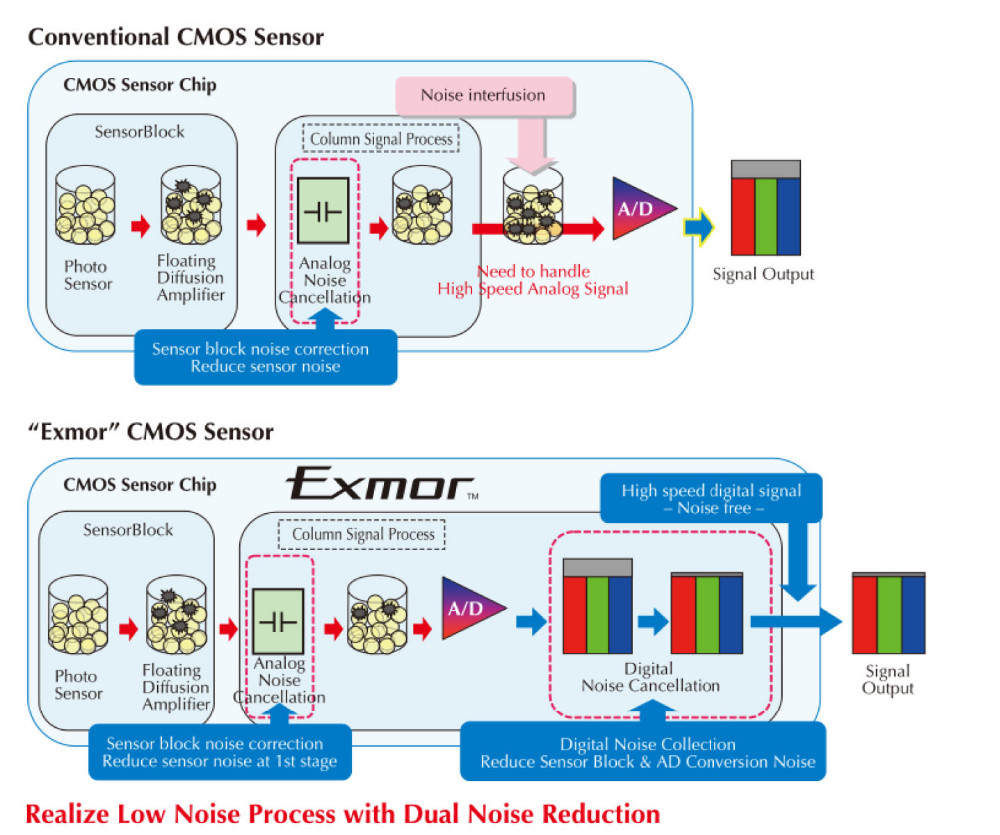

1.  As you can see from the above diagram, the Exmor sensor has 2 noise reduction process
including analogue noise reduction and digital noise reduction while the traditional one has
only analogue noise reduction.


2.  Even the smallest amount of signal noise can have a negative impact on a photo. Noise is
introduced into an image if defects are present in the silicon from which the pixel is made.
By minimizing the occurrence of defects and contamination, and by shielding areas that are
vulnerable to defects, Sony has decreased the amount of noise that may be possible in other
sensors.


3.  Sony enhanced sensitivity of the CMOS sensor by modifying the transistor array and layout,
and by making the photodiode as large as possible and creating a system that increases the
accuracy of light that is guided to the photodiode.

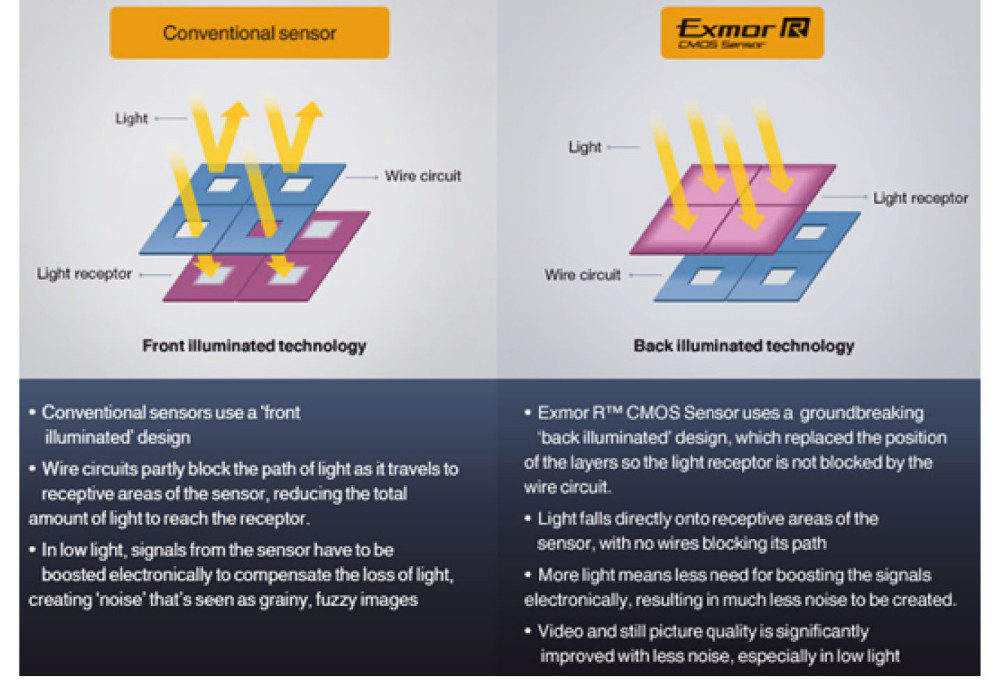

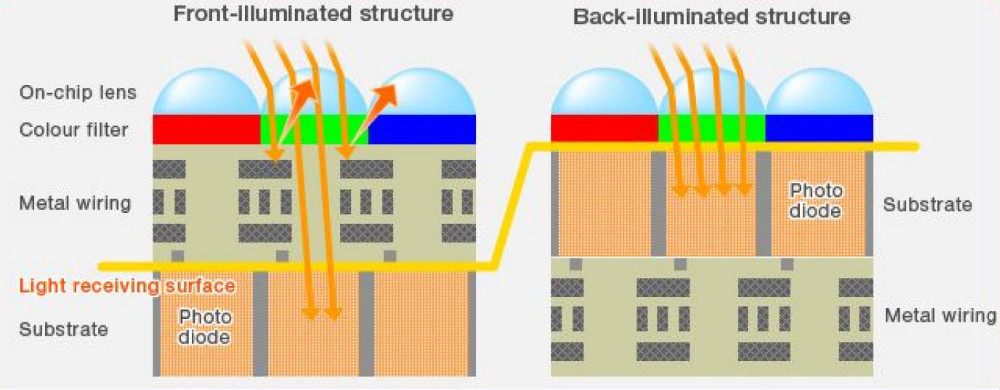

2) Back-illuminated, High Sensitivity and no CRA Related Defects ("Exmor R")


Sony further improved the capabilities of the CMOS sensor by developing a back-illuminated
structure, with the aim of creating a camera capable of taking exceptional photographs even by
candlelight. "Exmor R" is approximately twice as sensitive as a conventional front-illuminated
CMOS sensor and also features low noise. In a back-illuminated CMOS sensor, light is directed
onto the silicon substrate from behind, allowing light to be used with a level of efficiency not
possible with conventional front-illuminated pixel structures. Photographers can now create
smooth, high-quality images in low light settings, including night scenes.

The CRA related problem (background not uniform) does not exist anymore.


3) Fast Frame Speed
The key to increased speed can be found in parallel signal processing. CMOS sensors have
analog-digital (A/D) conversion circuits that convert analog pixel signals into digital signals. Speed
is increased by arranging thousands of these circuits in a horizontal array and allowing them to
operate simultaneously. The A/D conversion circuits used in Sony's CMOS sensors have important
characteristics, including the reduced size of the analog circuits in which noise is created, and
automatic noise cancellation. This circuit design enables noise reduction to be combined with
enhanced speed.
The latest Sony sensors can support fast frame speed and USB3.0 could help it to achieve their
best performance. This is the reason why RisingTech develop new cameras based on USB3.0.
Besides, USB3.0 help the camera to transfer video on 12/14bit.


4) Global Shutter (Some Sensors)
The conventional CMOS use the rolling shutter while CCD use global shutter. Now some Sony
Exmor and Exmor R sensors use global shutter which make the CMOS sensor more like a CCD,
such as IMX174, IMX302.


5) Good Continuity
In the near future, Sony will develop and provide better sensors and this will enrich RisingTech E3
and G3 family products.

USB3.0 5 Gbps interface ensuring high frame rate

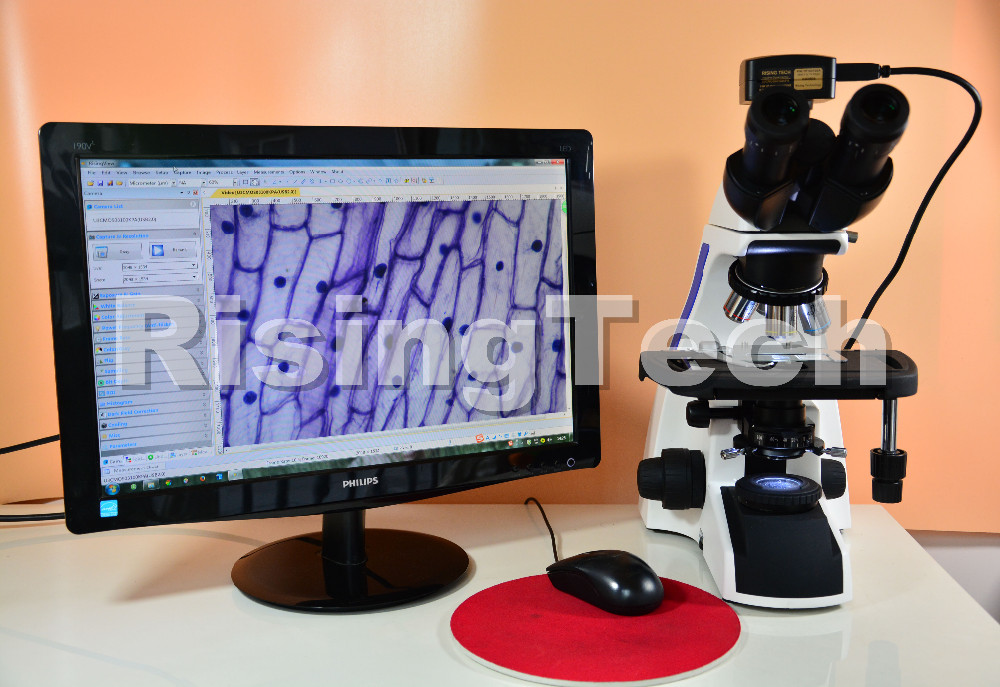

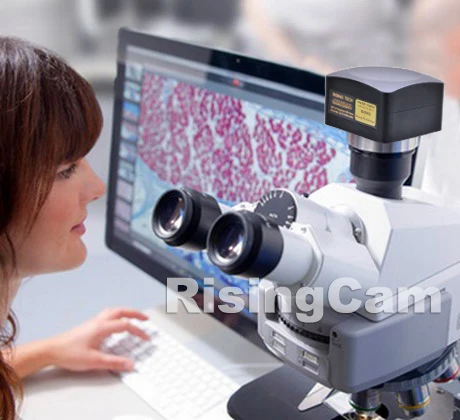

E3ISPM  Camera working pictures

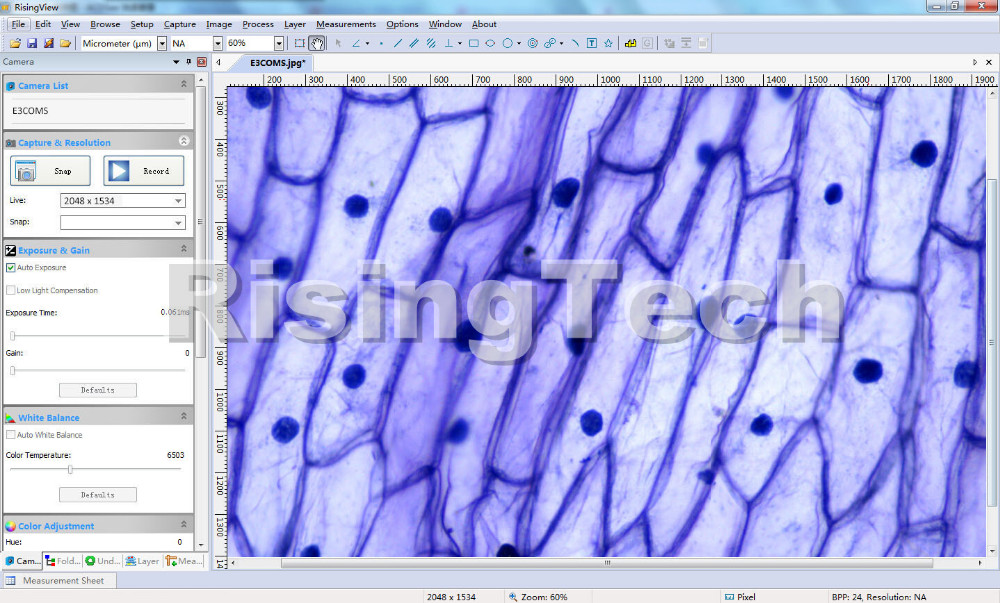

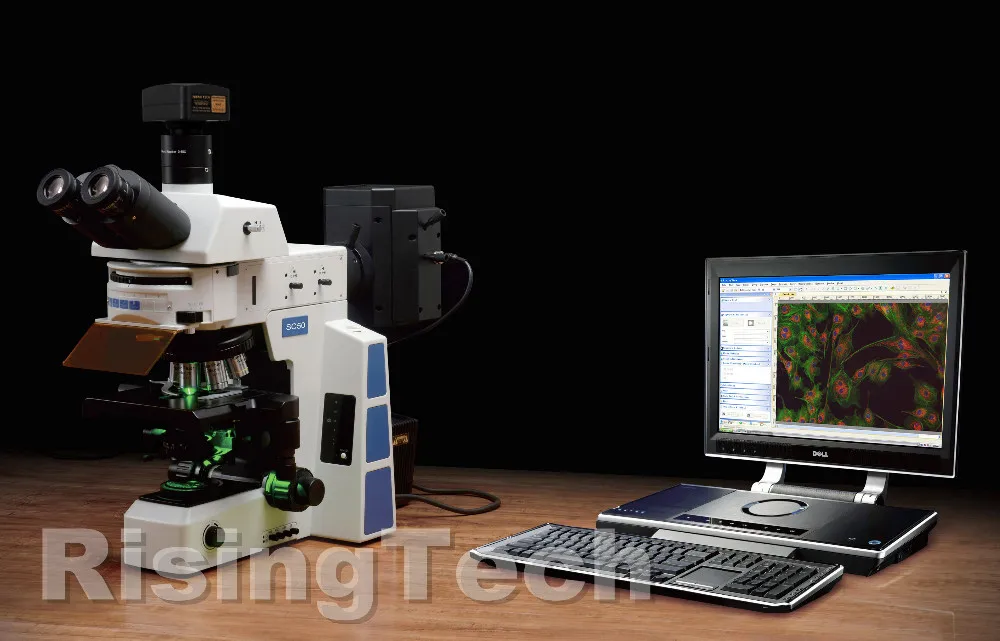

E3ISPM Camera Connect to PC computer by RisingView software

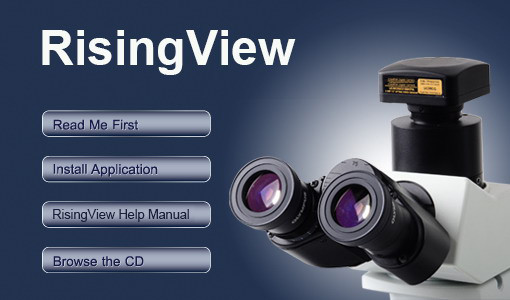

This camera working with RisingView software- Instruction below


Sample pictures Made by E3ISPM Camera

Bright Field Image

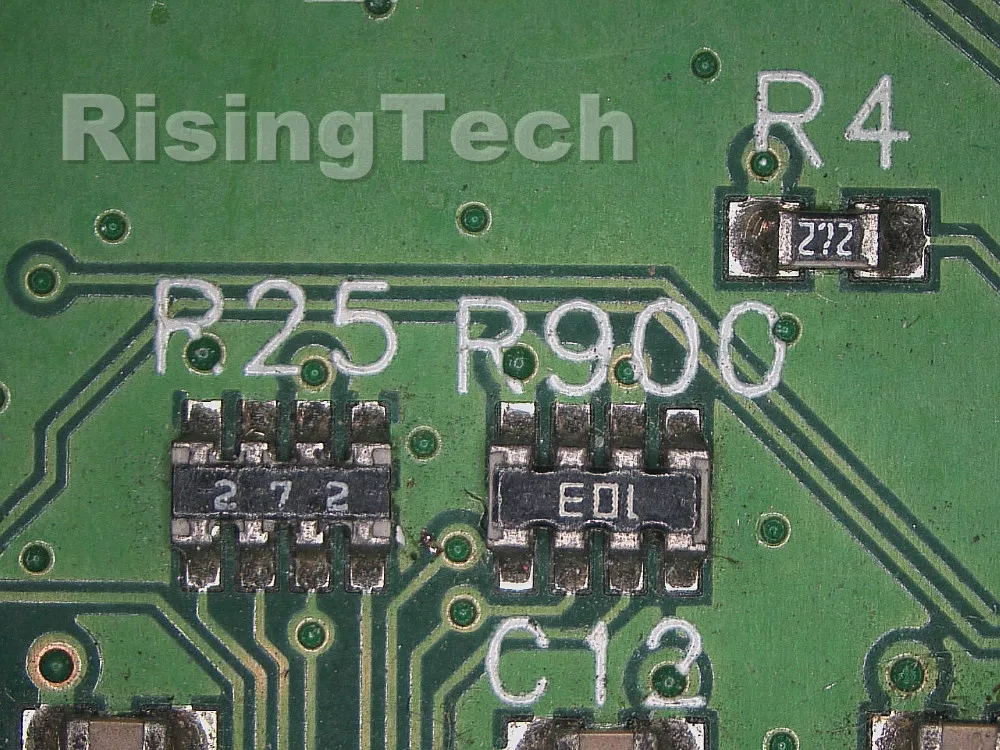

PCB Image

Metallurgical Image

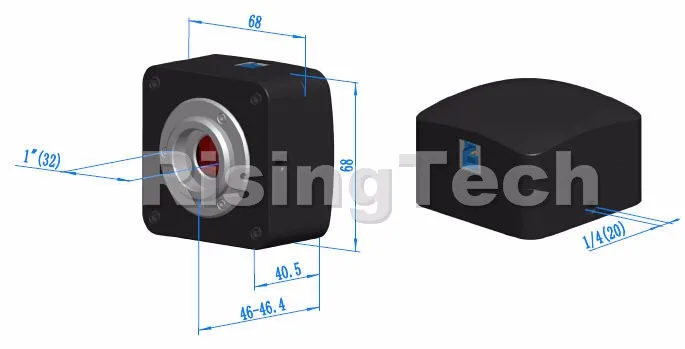

E3ISPM  Camera size

The E3ISPM COMS camera body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is
designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a
rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.


E3ISPM  Camera Packing

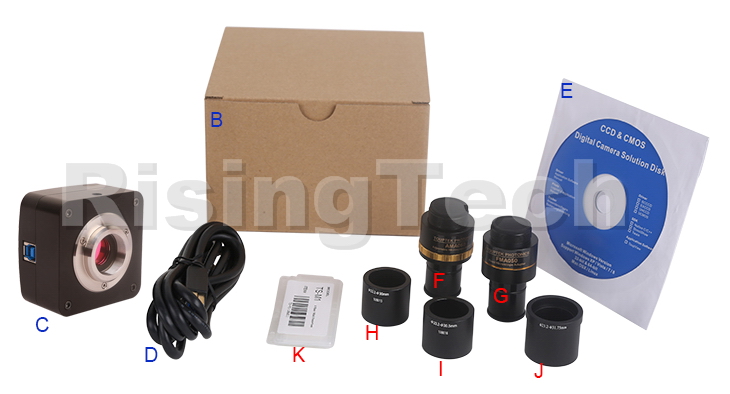

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the Photo

B

Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)

C

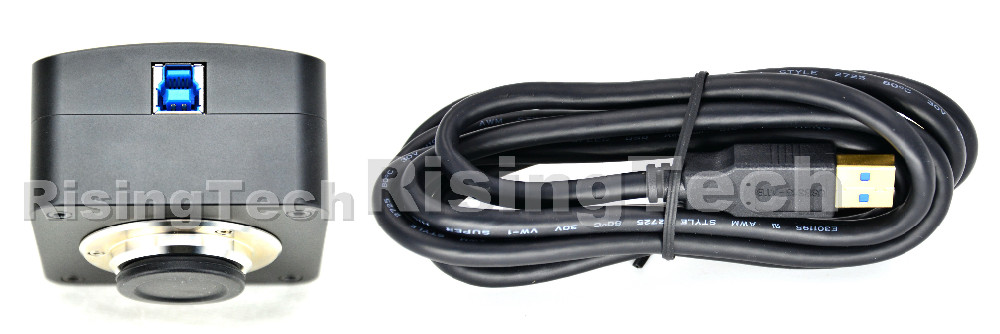

E3ISPM series USB3.0 C-Mount camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, 12cm)


Optional Accessory

F

Adjustable lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube

(Please choose 1 of them for your microscope)

C-Mount to Dia.31.75mm Eyepiece Tube

(Please choose 1 of them for your telescope)

G

Fixed lens adaptor

C-Mount to Dia.23.2mm Eyepiece Tube

(Please choose 1 of them for your microscope)

C-Mount to Dia.31.75mm Eyepiece Tube

(Please choose 1 of them for your telescope)

Note: For F and G optional accessory, please specify your camera type(C-mount, microscope camera or telescope camera) RisingTech engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

H

Calibration Lit


106011/TS-M1(X=0.01mm/100Div.);

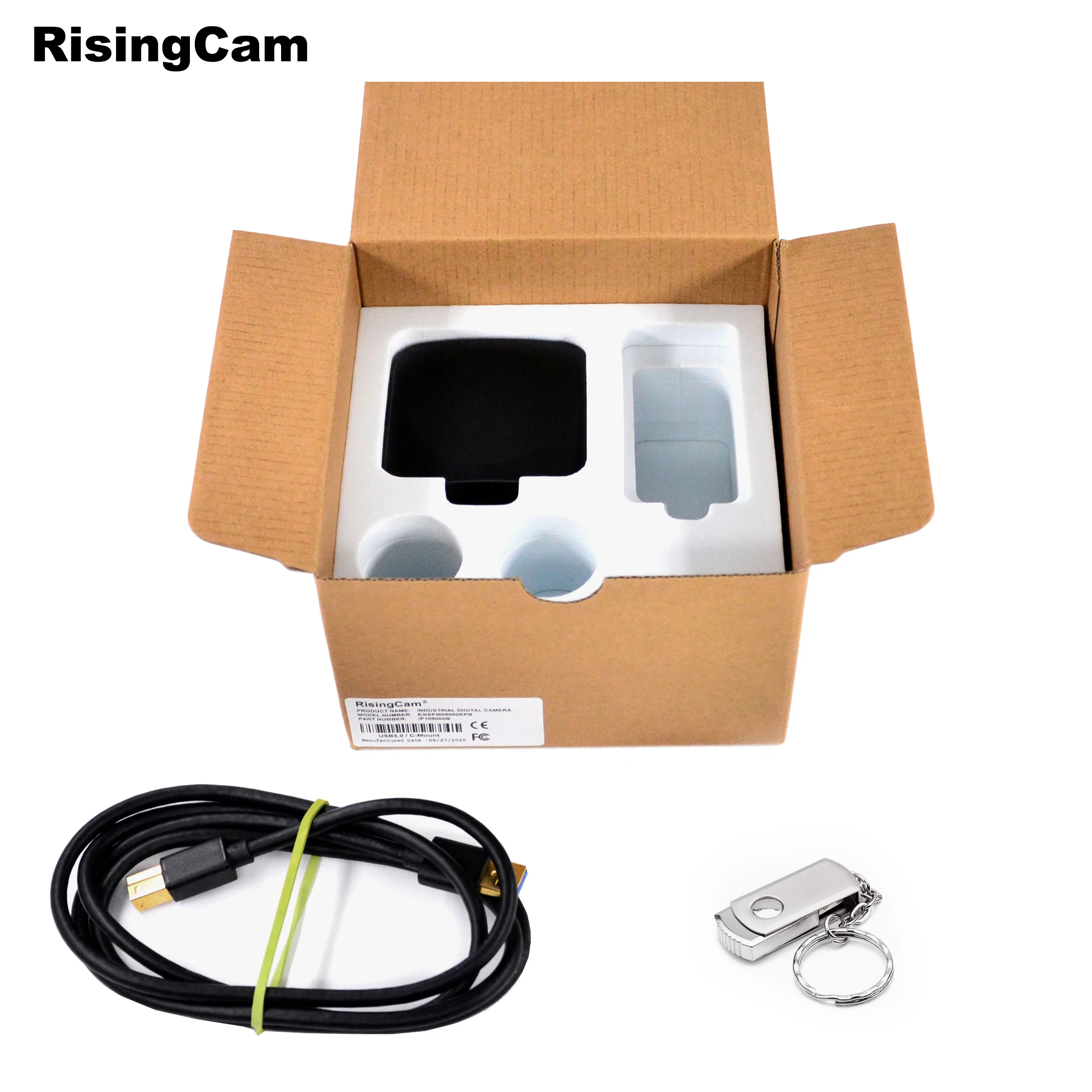

Standard Packing picture

In order to facilitate buyers to install the software, we use USB flash drive instead of CD.

We store the software installation package, software manual, SDK and other files in this USB flash drive.



Our Services

Warranty: 1 years
