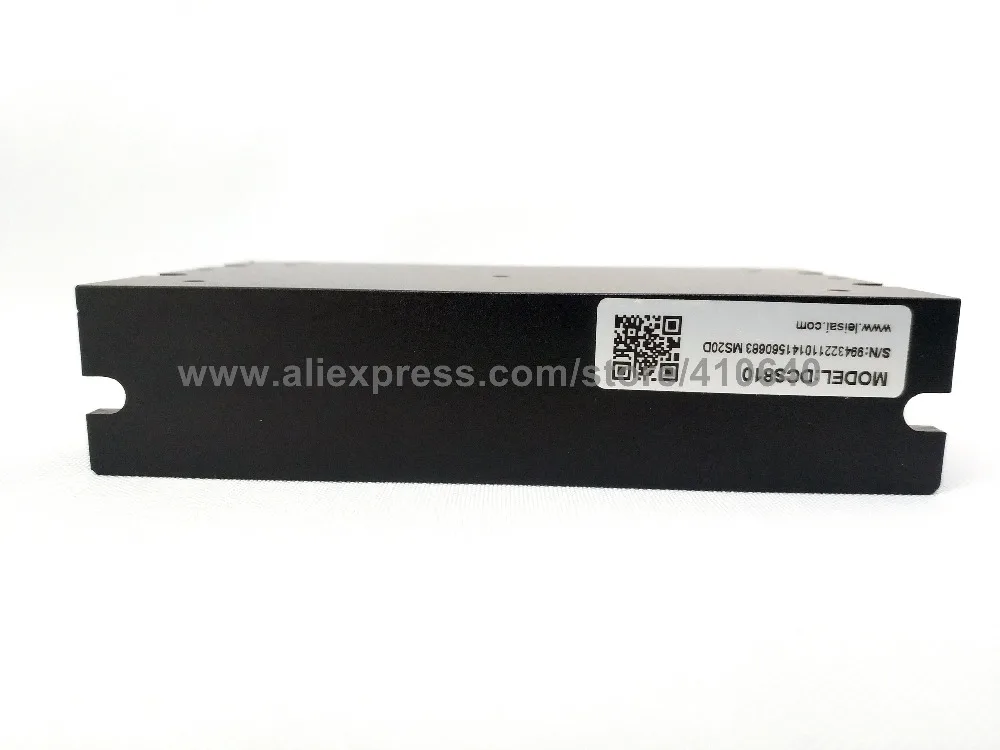

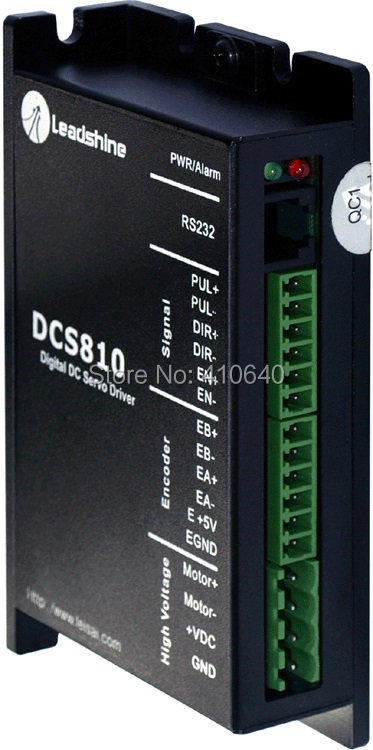

Оригинальный сервопривод Leadshine DCS810, макс. 80 В постоянного тока, 20 А, цифровой сервопривод постоянного тока, подходит для струйного принтера, фотоаппарата или чертежной машины

Leadshine DCS810 матовый сервопривод с MAX 80 VDC Вход Напряжение и 20A ток

5.0

Цена: 10 669 — 13 335 ₽

В избранное

В корзину Купить на AliExpress (цена могла измениться)

Характеристики

Название бренда:Нет
Номер модели:DCS810
Происхождение:Китай
Сертификация:Нет
Питание:DC
Тип двигателя:Двигатель постоянного тока DC
Единица измерения:штука/штуки
Количество:1
Control Mode:Step & Dir
Max Input Frequency:500KHz
Input Voltage Range:18 - 80 VDC
Continuous Current:10 A
Peak Current:20 A
Logic Current Range:7-15 mA
Logic Voltage Range:4-5 VDC for pulse active high (default)
Communication Type:RS232
Step Width:2,500 ns
Isolation Resistance:500M Ohm

Отзывы

5.0
Sergey P. 2 декабря 2024

Замовлення отримав раніше заявленого терміну.

Описание

Notice:

We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

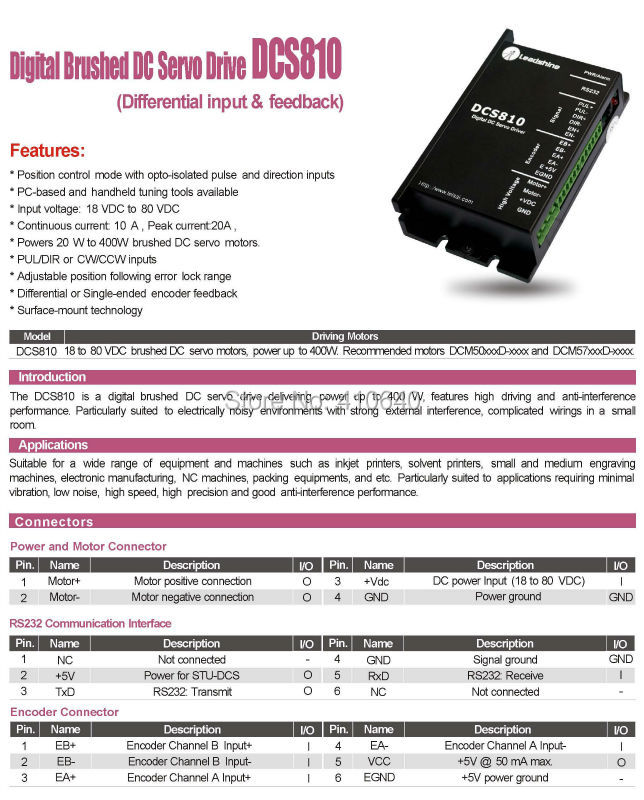

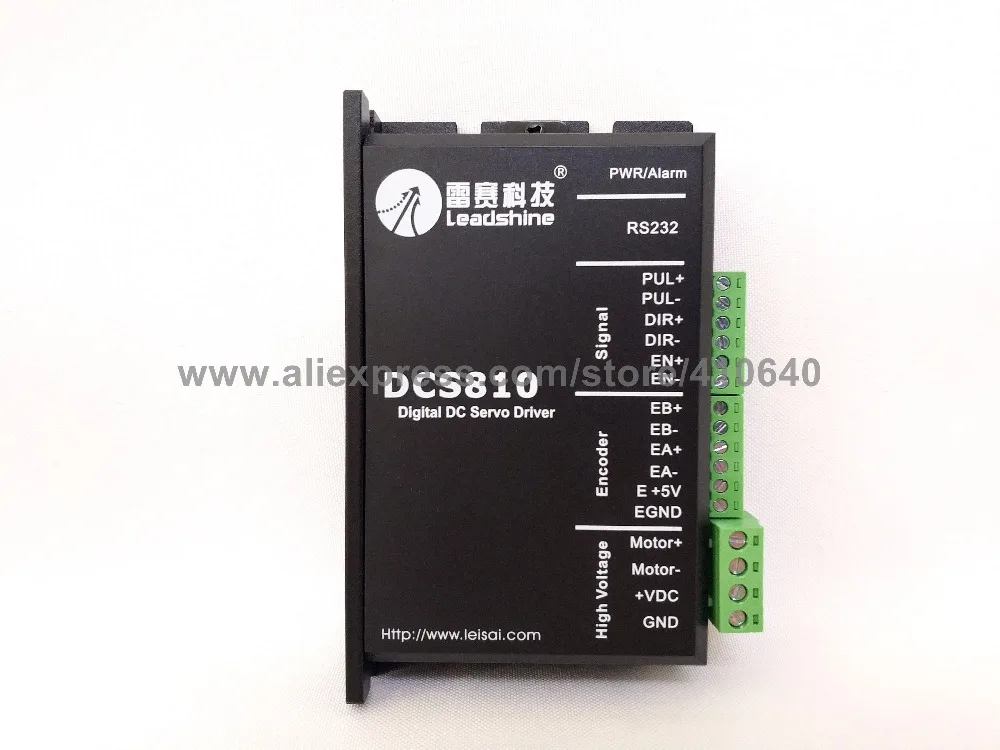

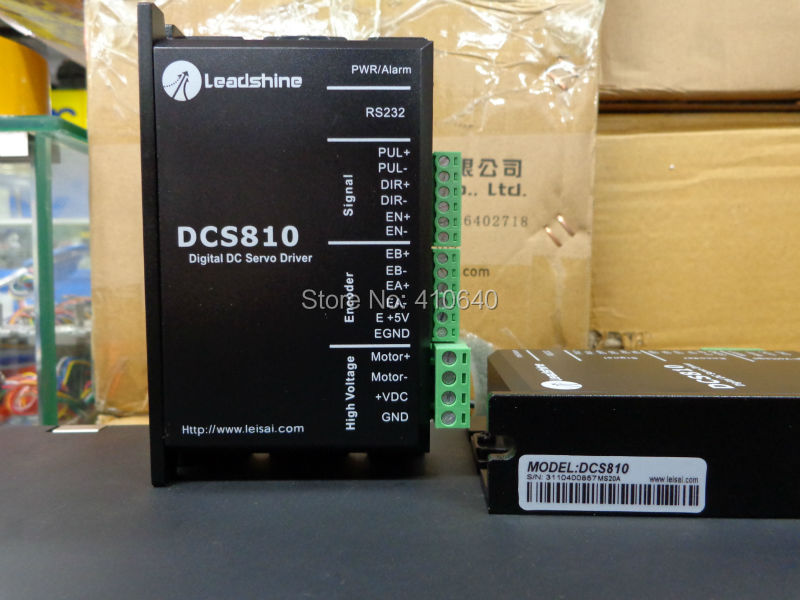

DCS810 Brushed DC Servo Drive

The DCS810 is a digital DC servo driver developed with DSP and high efficient MOSFET technologies. In position control, it's easy for the end users to change stepping drivers to the DCS810 without changing control systems, because its input command is PUL/DIR signal, which is compatible with that of stepping drivers. In low power motion control applications, performances of DC servo systems using the DCS810 are better than those of digital AC servo systems in velocity, precision, noise, stability, or at least as good as those of digital AC servo systems. However, the cost of the DCS810 stays at the price line of stepping driver, namely far lower than those of AC servo drivers.

Compared to the DCS810S, the DCS810 can accept differential control signals and differential encoder feedback signals, offering better anti-interference performances. Compared to the DB810A, parameter visible tuning tools make the DCS810 much easier to tune.

The DCS810 is very easy to tune and all parameters are visible. Parameter visible tuning tools, including Pro Tuner (Windows based setup software) and STU (Small servo tuning unit) can meet different tuning environments or requirements.

Features:

18-80VDC, 0-20A, 20-400W.

Based on DSP control technology and high smooth servo control algorithm.

Parameter visible tuning tools, including Pro Tuner and STU.

Feedback resolution X4 encoder line count.

Position Following error lock range adjustable

Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%

Electronic gear ratio from 1/255 to 255

Built-in motion controller for self-test with trapezoidal velocity profile

Support PUL/DIR and CW/CCW control signals

Opto-isolated inputs, support single-ended and differential signals

10 latest errors self-record function

Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections

Small size, surface-mount technology

Specifications:

Model: DCS810

Control Mode: Step & Dir

Max Input Frequency: 500KHz

Input Voltage Range: 18 - 80 VDC

Continuous Current: 10 A

Peak Current: 20 A

Logic Current Range: 7-15 mA (10mA typical)

Logic Voltage Range: 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low

Communication Type: RS232

Pulse enabled at: Rising edge

Electronic gear ratio: 1/255 - 255

# of Digital Inputs: 3

Step Width: 2,500 ns

Minimal Direction Setup Time: 5,000 ns

Protection: Over-current; over-voltage; under voltage; phase error; encoder error; position following error

Isolation Resistance: 500M Ohm

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temporature: 0-50°C

Humidity: 40 95% RH

Operating Temporature: 0-70°C

Vibration: 5.9 m/s2 Max

Storage Temporature: -20-65°C

Specification: 4.57 X 2.73 X 1.04 Inches

Weight: 0.46 lb

Electrical Specifications (Tj = 25oC/77oF):

arameters	DCS810
arameters	Min.	Typical	Max.	Unit
Peak output current	0	-	20	A
Supply voltage	+18	-	+80	VDC
Logic signal current	7	10	15	mA
Pulse input frequency	0	-	500	KHz
Isolation resistance	500			Mohm
Current provided to encoder			50	mA

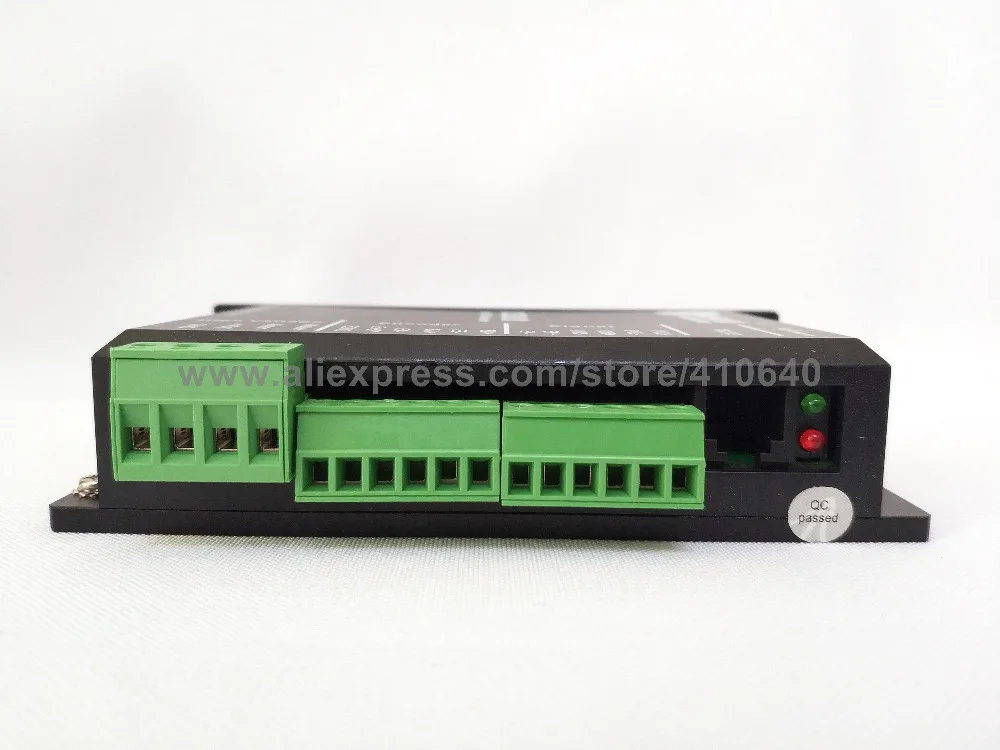

Connector:

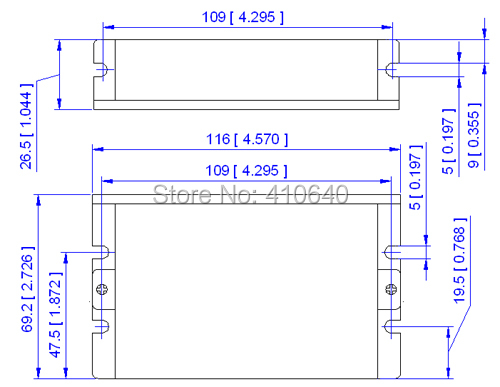

Mechanical Specifications (unit: mm[inch] ):

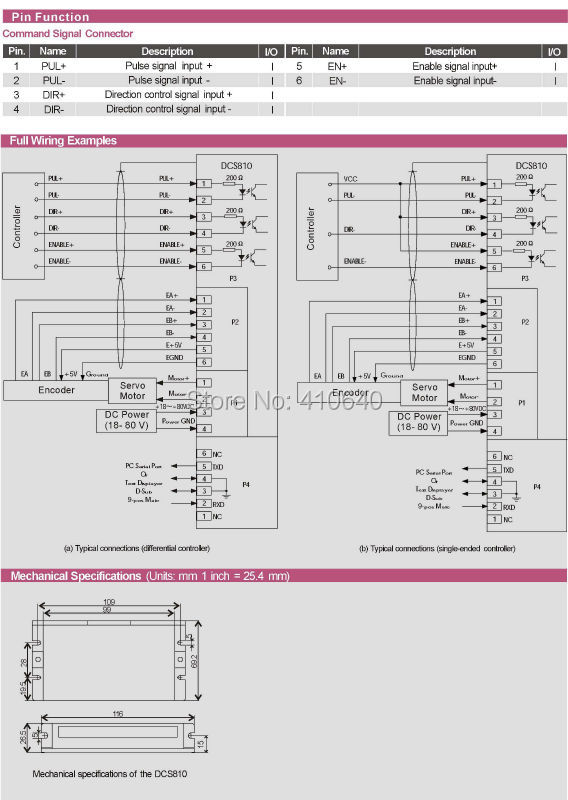

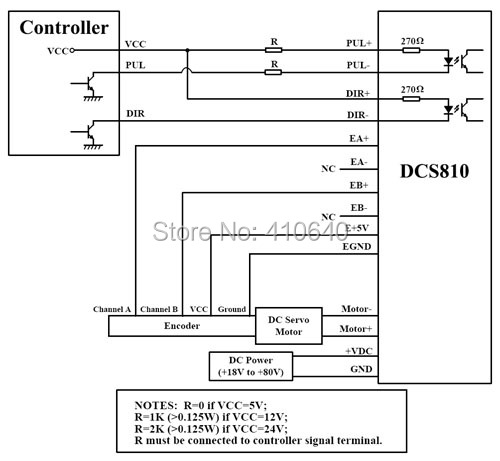

Typical Connection:

Capable of driving 20-400W brushed servo motors:

DCM50202D-1000

DCM50205D-1000

DCM50207D-1000

DCM57202D-500

DCM57207D-500
