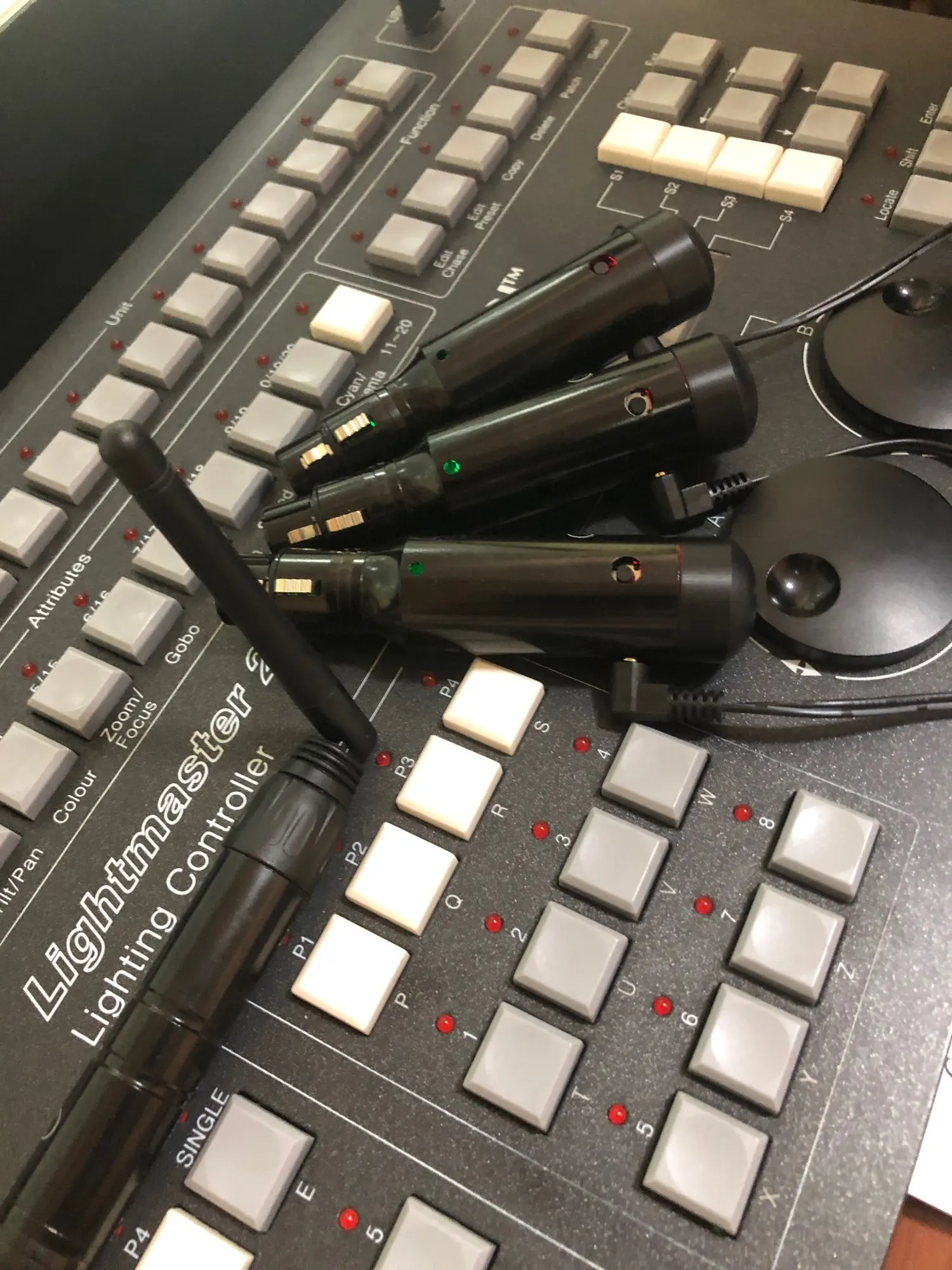

Беспроводной контроллер ALIEN Recharge 2.4G ISM для сцены

FEATURE

Latest design wireless DMX512 receiver have a built-in battery, don't need power adapter any more when it works. 2 hours full charging time, 4 hours working time. Users also can use the product while charging.
Metal Black Shell. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color).
This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design. No time delay when signal data is transmitting, signal data is real time and reliably.
RF frequency 2.400 - 2.525G 126 channels jumping frequency automatically, high anti-jamming ability.
The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

SPECIFICATION

2.4G wireless DMX512 R/T
7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
Input voltage: 5VDC 500mA MIN
Communication distance: 300M (visible distance)
Battery: 16340 battery 3.7V 650mA
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface: RS485
Operating temperature: -40 ~ 85 °C,Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

OPERATING MANUAL

1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC,to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition: LED constant lit up:No DMX or wireless signal. Red LED flash:Transmitting Green LED flash:receiving

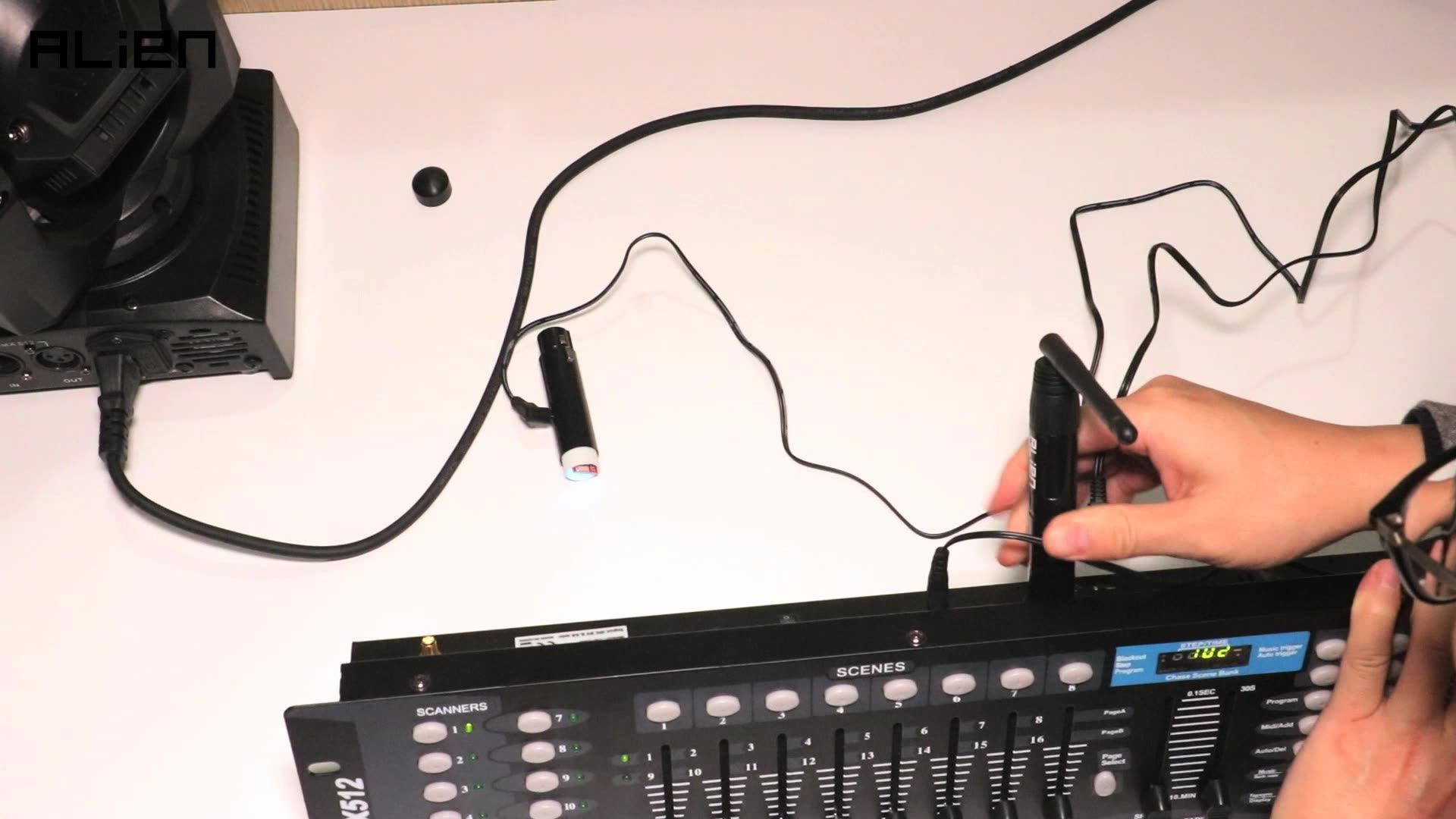

ESTABLISHING COMMUNICATION

1. Power on DMX512 wireless received board first and then following to power up the transmitted boards.
2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

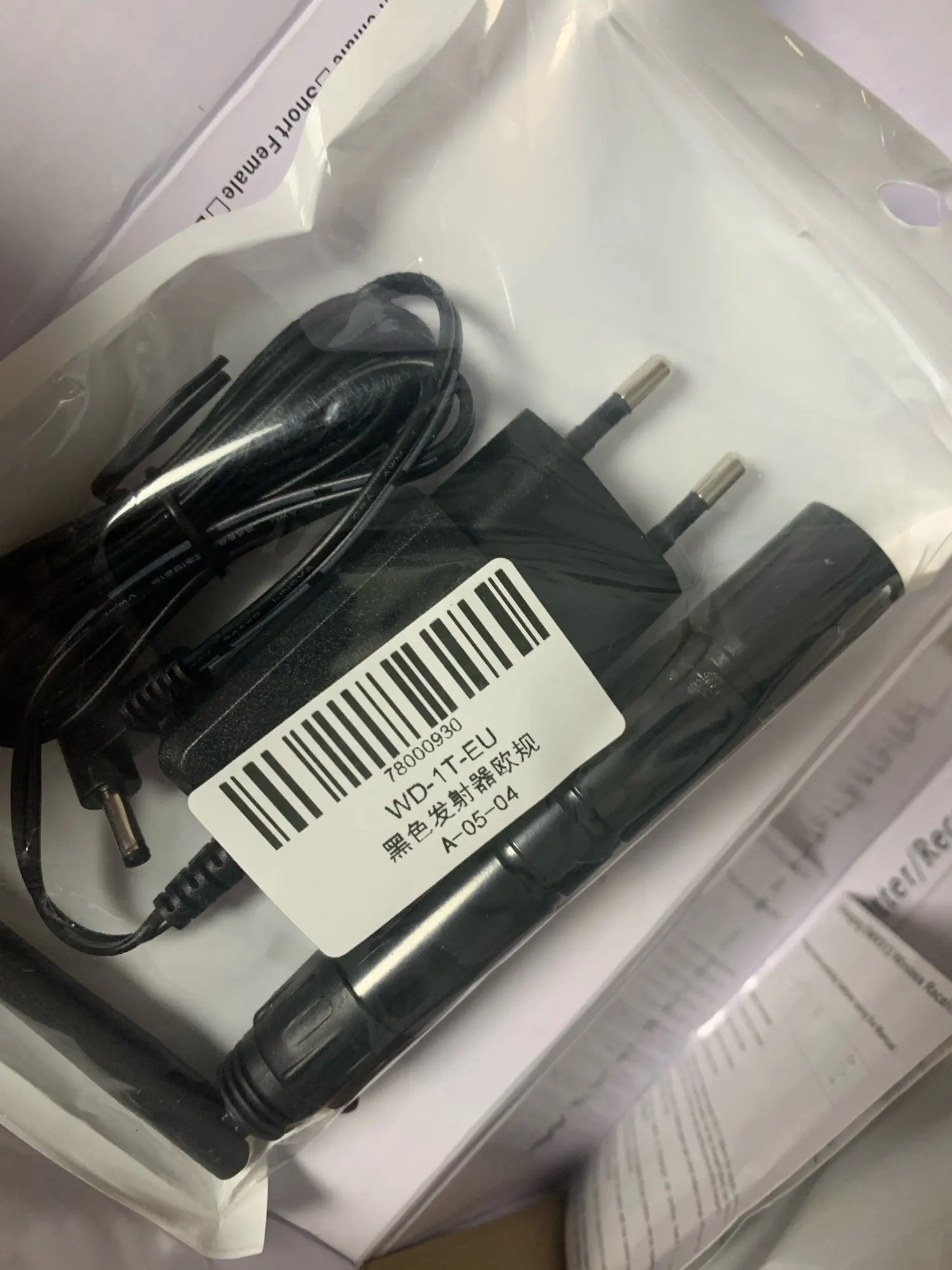

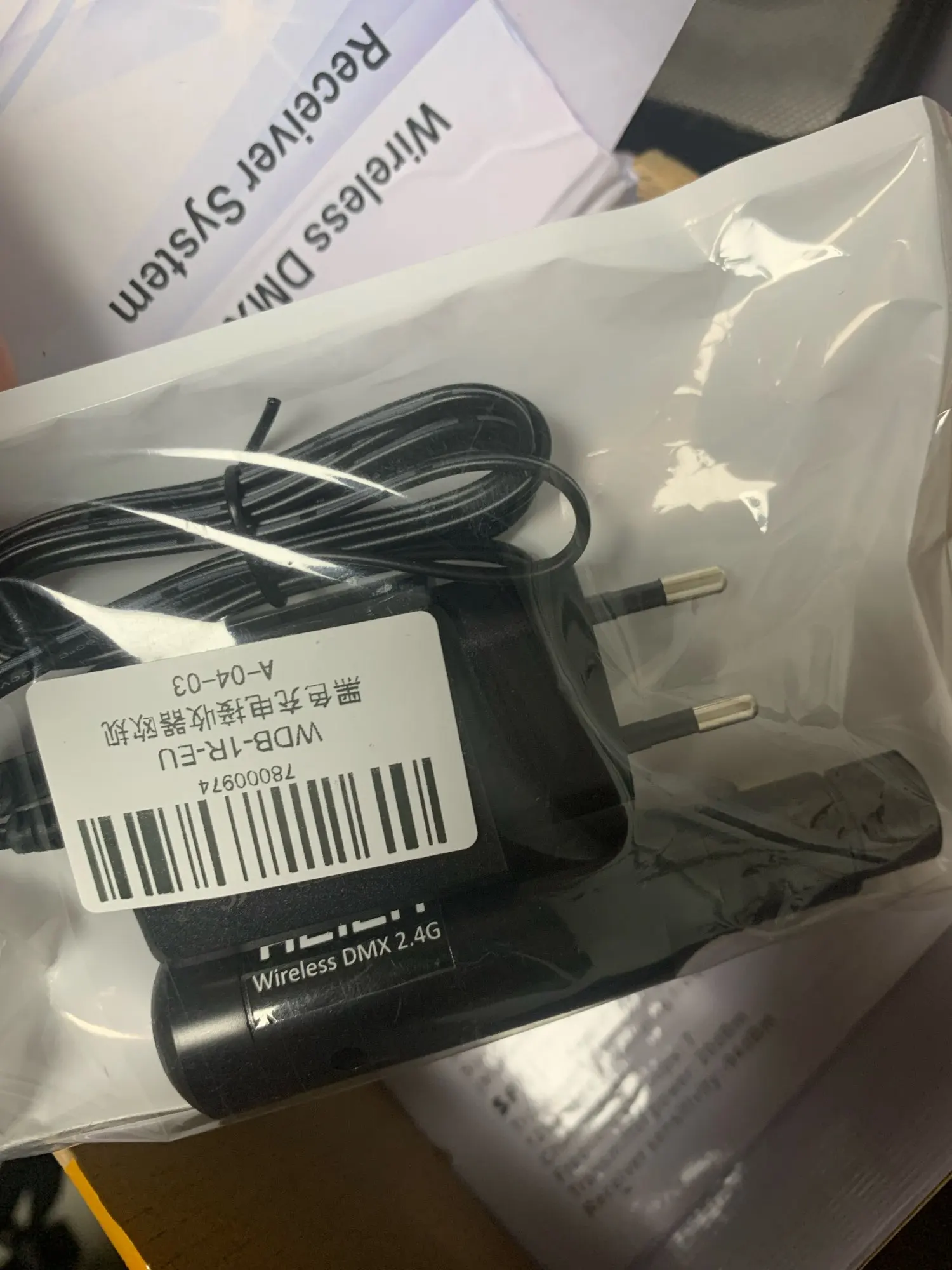

Which Plug did I need?

In order to get the package soon, place choose the right Plug Type.

NOTE

Only Receiver is rechargeable . The Transmitter is only AC power

BUILT-IN BATTERY

16340 Battery 3.7V 650mA

FAQ

Q : Can I use this with microphones ? Can I use to make the microphones wireless ?

A : No....this is for wireless DMX control of lights not audio .

Q : Does it have a 5 pin adapter for connecting to the DMX port on a lighting console?

A : It is a 3-Pin. If you need 5-Pin, you can contact ALIEN customer service .

Q : How many DMX addresses can be sent thru one transmitter and one receiver?

A : there are 7 channels for the ALIEN and they are colored red green purple blue and so on. The transmitter needs to match the color using on all receivers.

Q : Have receiver built-in battery?

A :yes , Built-in Battery . 16340 battery 3.7V 650mA

Q : Which plug i can choose ?

A : The plug type as images below
