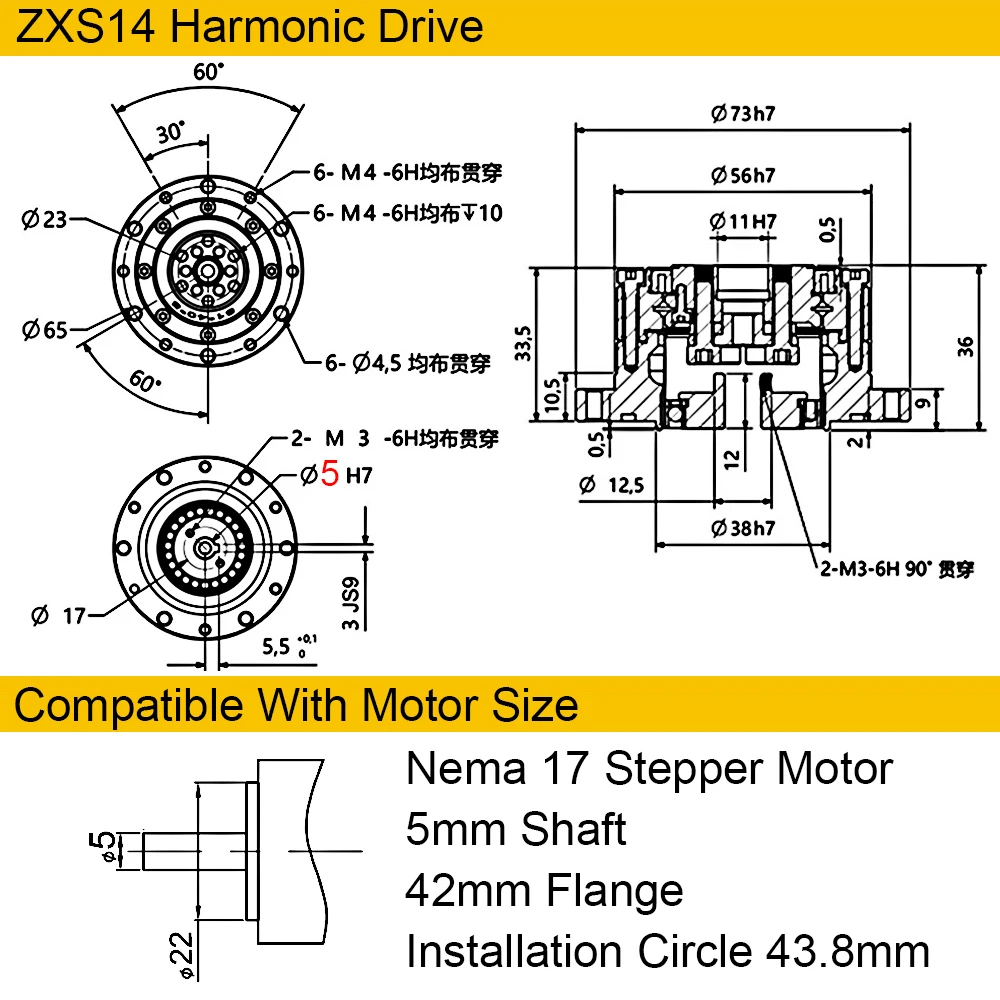

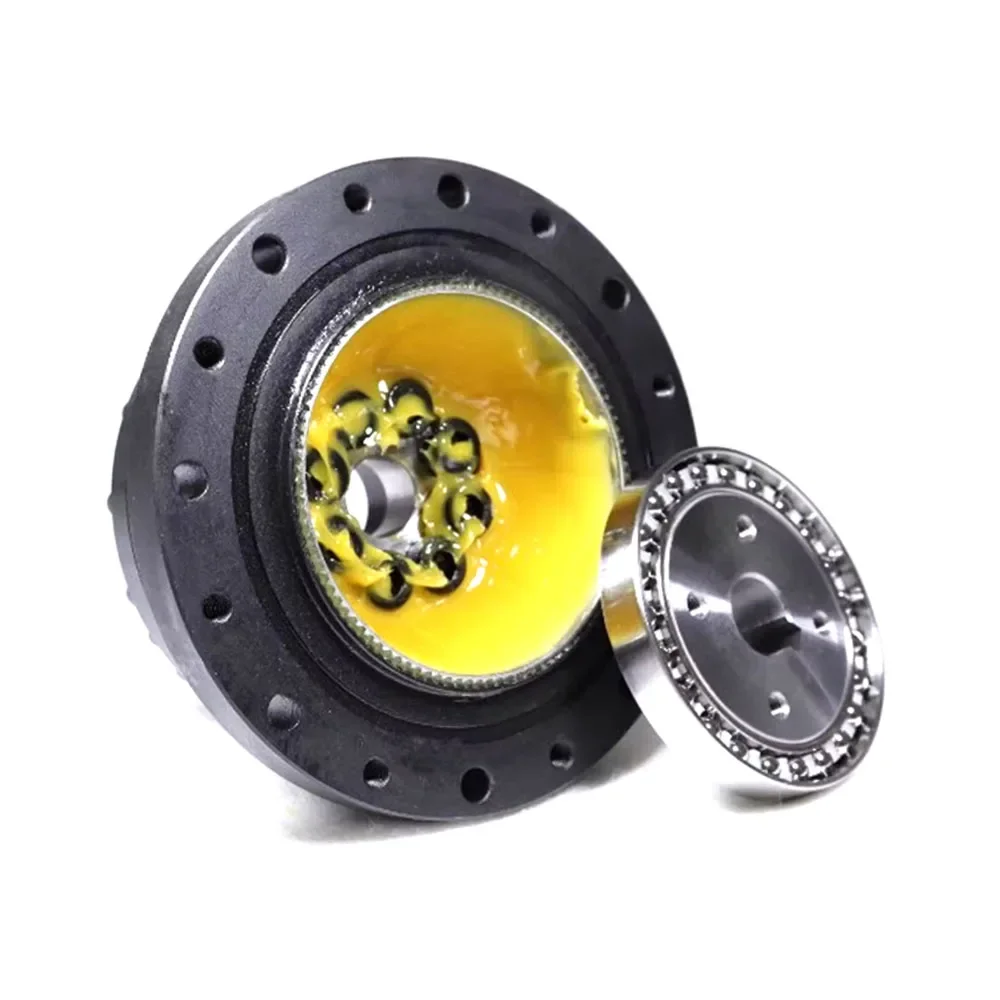

Гармонический привод Harmonic Drive для Nema17
Harmonic Drive With Flange Plate Cup Type Harmonic Reducer Humanoid Robot Arm...
Цена: 8 039 — 258 976 ₽
Характеристики
- Название бренда:Нет
- Номер модели:Harmonic Drive
- Происхождение:Китай
- Сертификация:Евротест (СЕ)
- Зубчатая передача:Гармонический
- Единица измерения:штука/штуки
- Количество:1
- Function 1:Cup Type Harmonic Drive
- Function 2:Cup Type Harmonic Reducer
- Function 3:Harmonic Drive
- Function 4:Harmonic Reducer
- Function 5:Harmonic Drive Gearbox
- Function 6:Harmonic Gearbox
- Function 7:Reducer
- Function 8:Harmonic Drive With Flange Plate
- Function 9:Standard Type Harmonic Drive
- Function 10:Cup Type Reducer
Отзывы
-

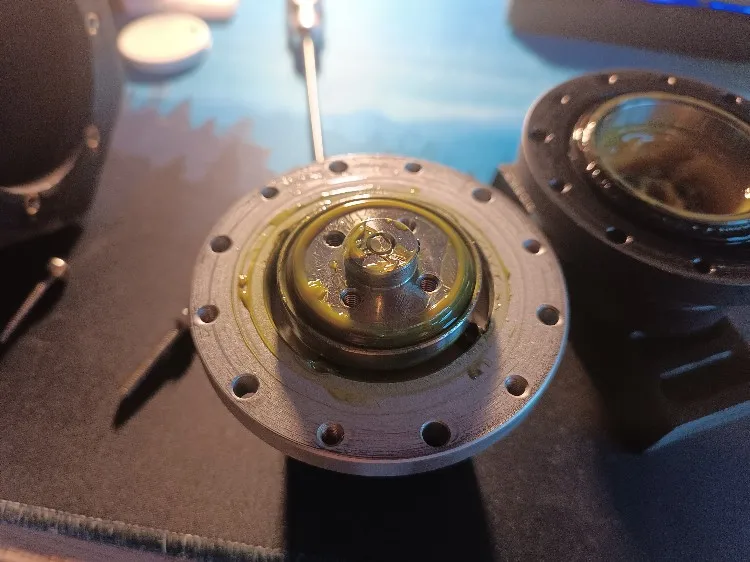

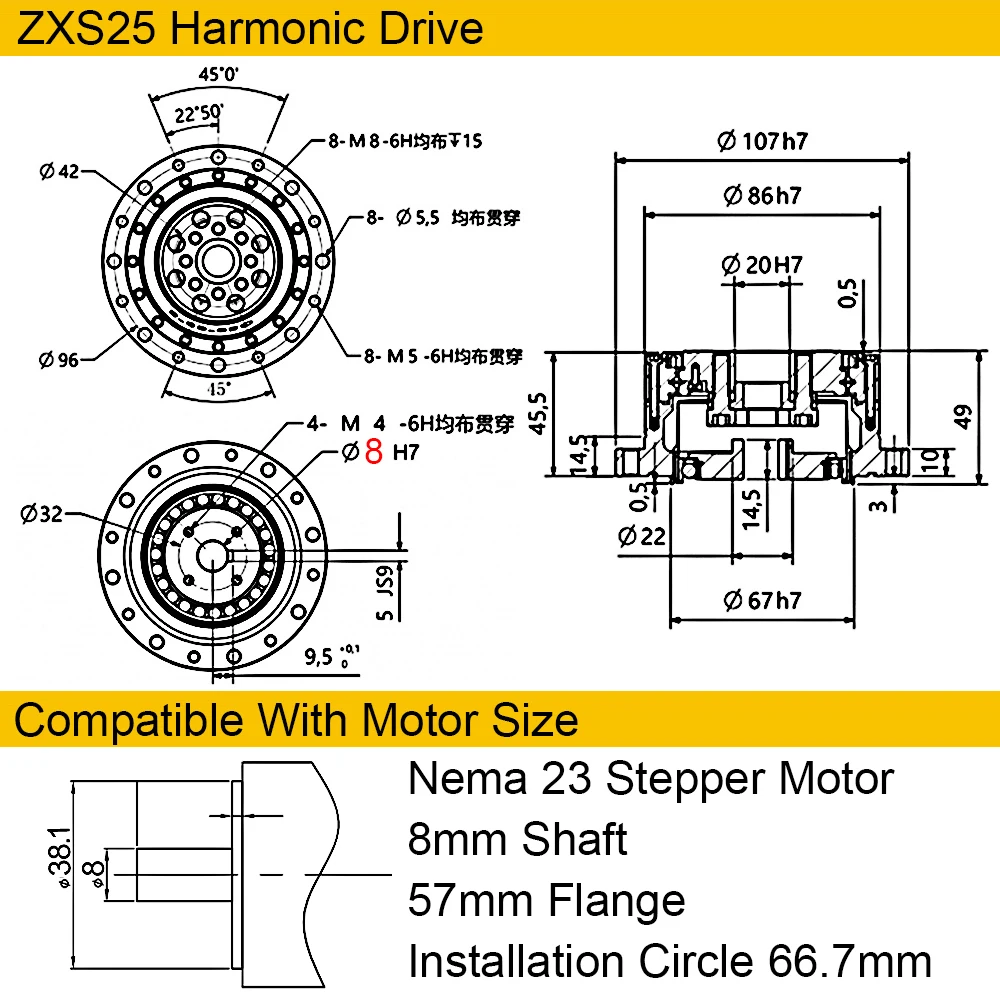

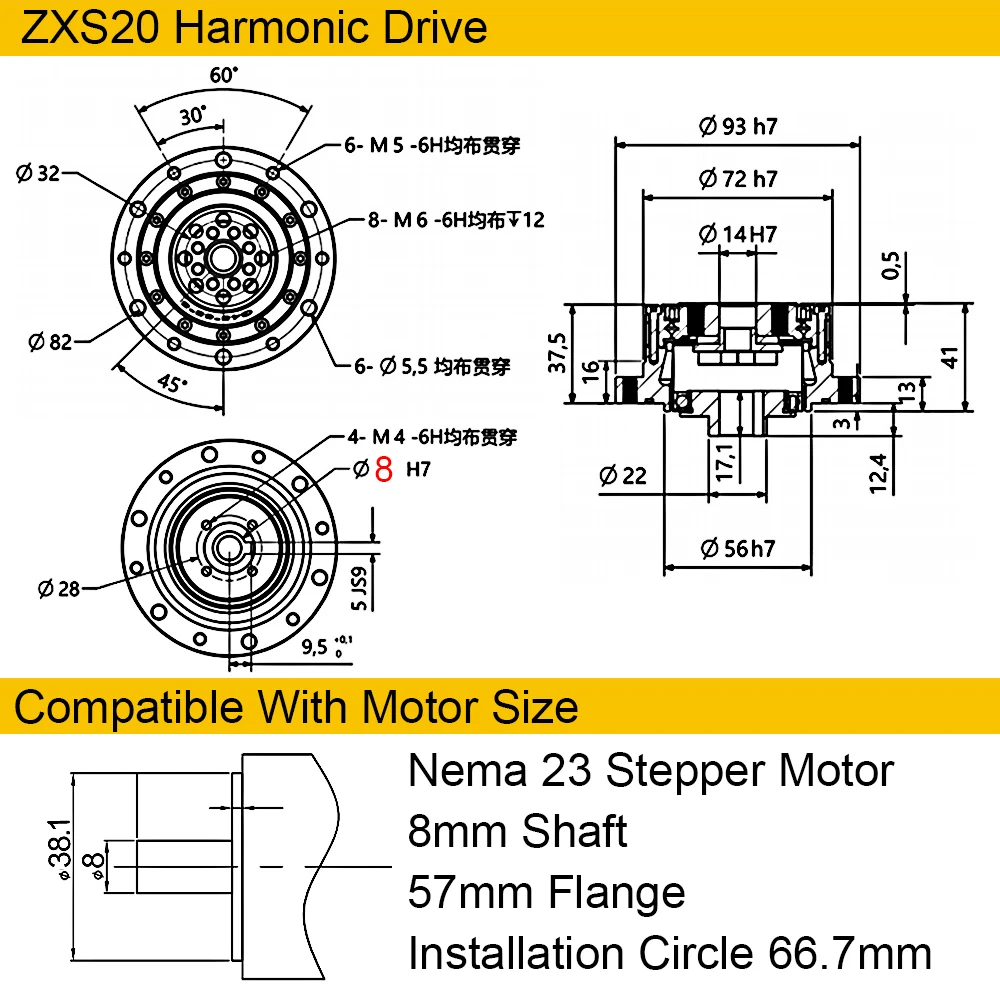

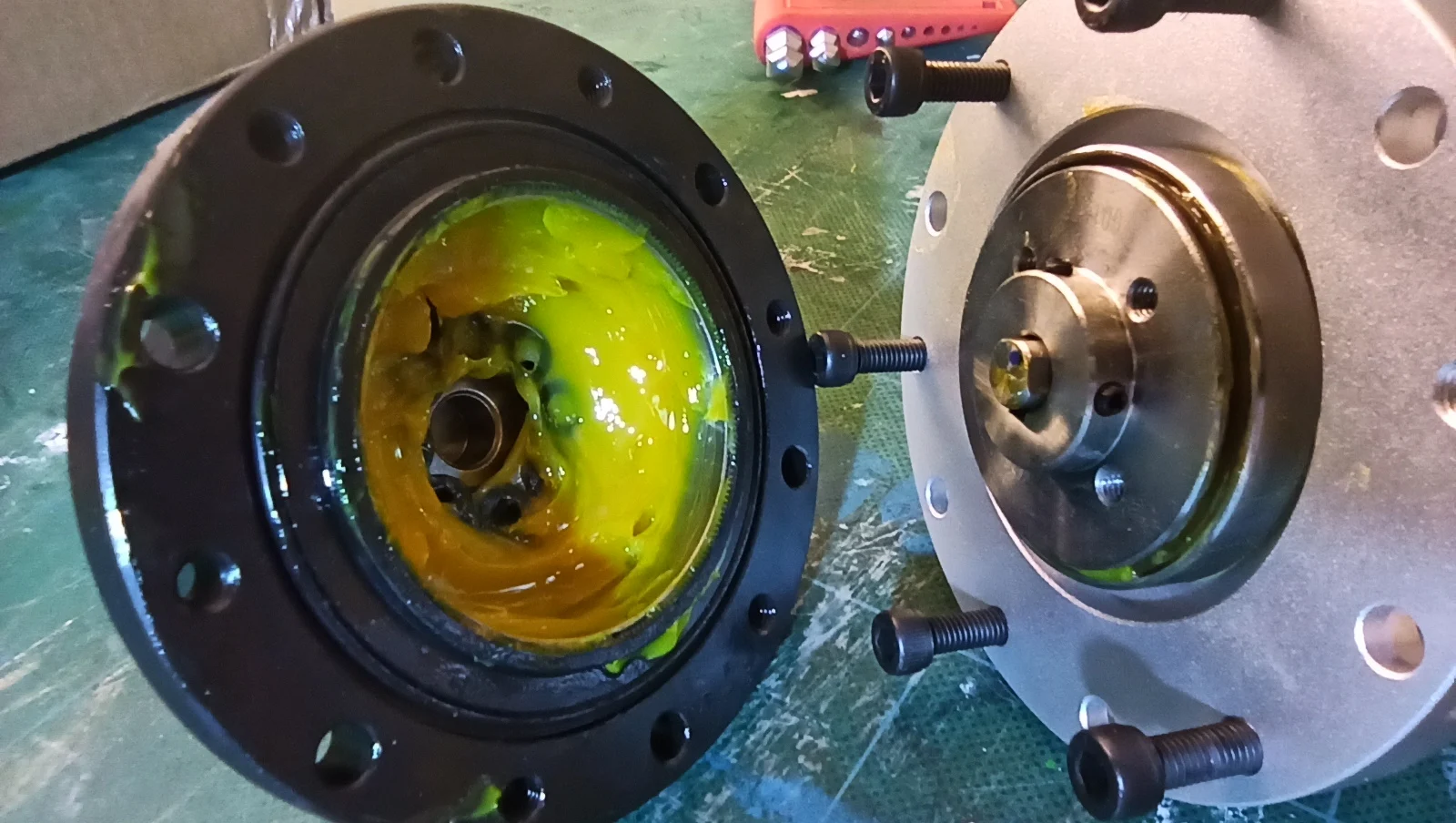

Товар соответствует описанию. Быстрая доставка. Долгая и дорогая доставка: больше месяца. Сборка проста и требует тщательного выполнения. zxs20 для Nema 23 с валом 8 мм можно установить без ключа. Дополнительный поперечный роликоподшипник не нужен.
Jacques W. 24 мая 2025
-

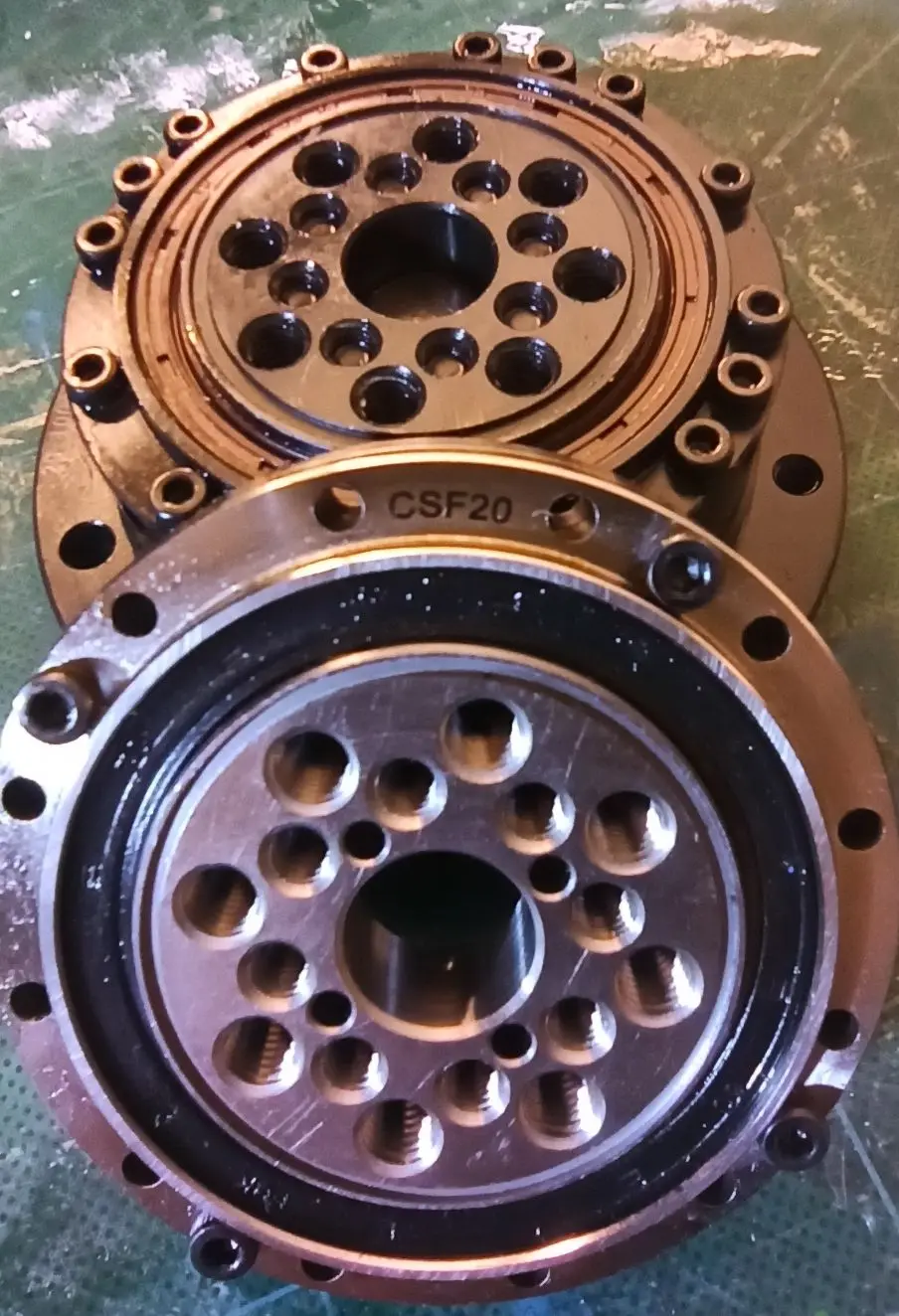

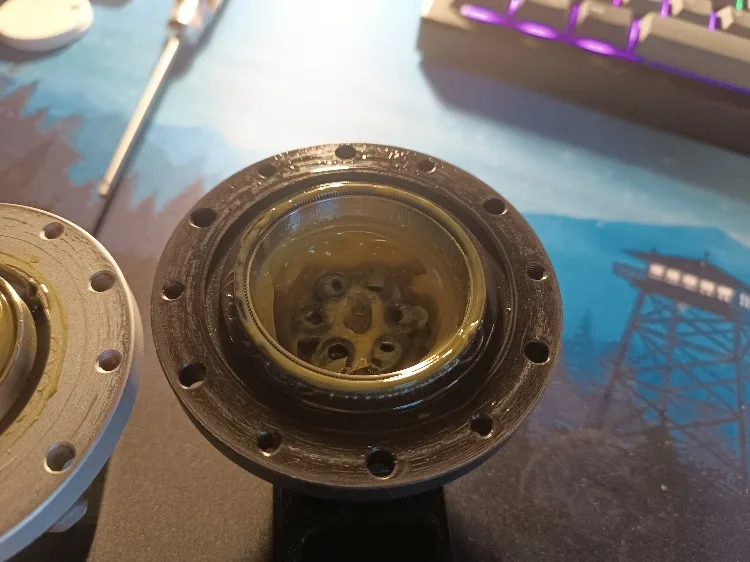

Я купил 2 диска размером 17, один работал нормально, однако у другого была странная проблема с переплетом в одной части вращения, к счастью, продавец согласился отправить замену бесплатно, так что спасибо за отличное обслуживание клиентов. 👍
Szymon Z. 13 марта 2025
Описание

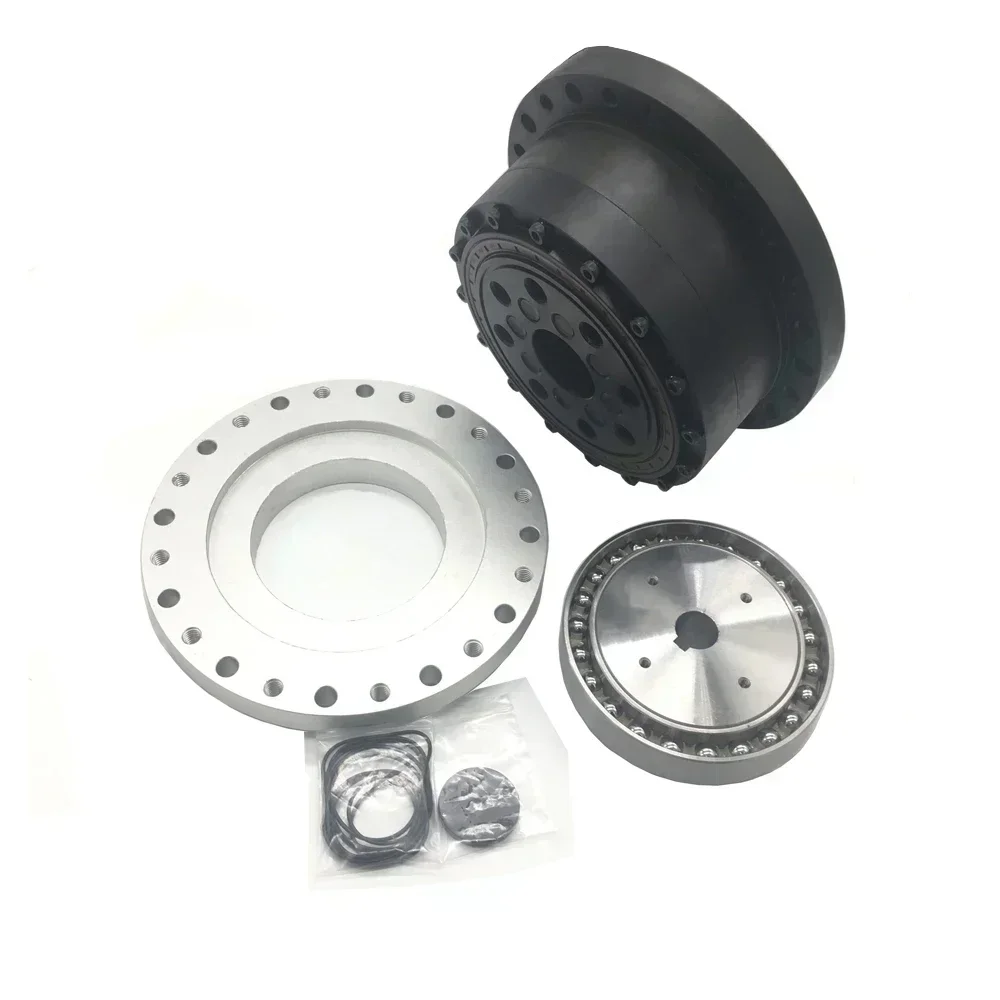

Package list:

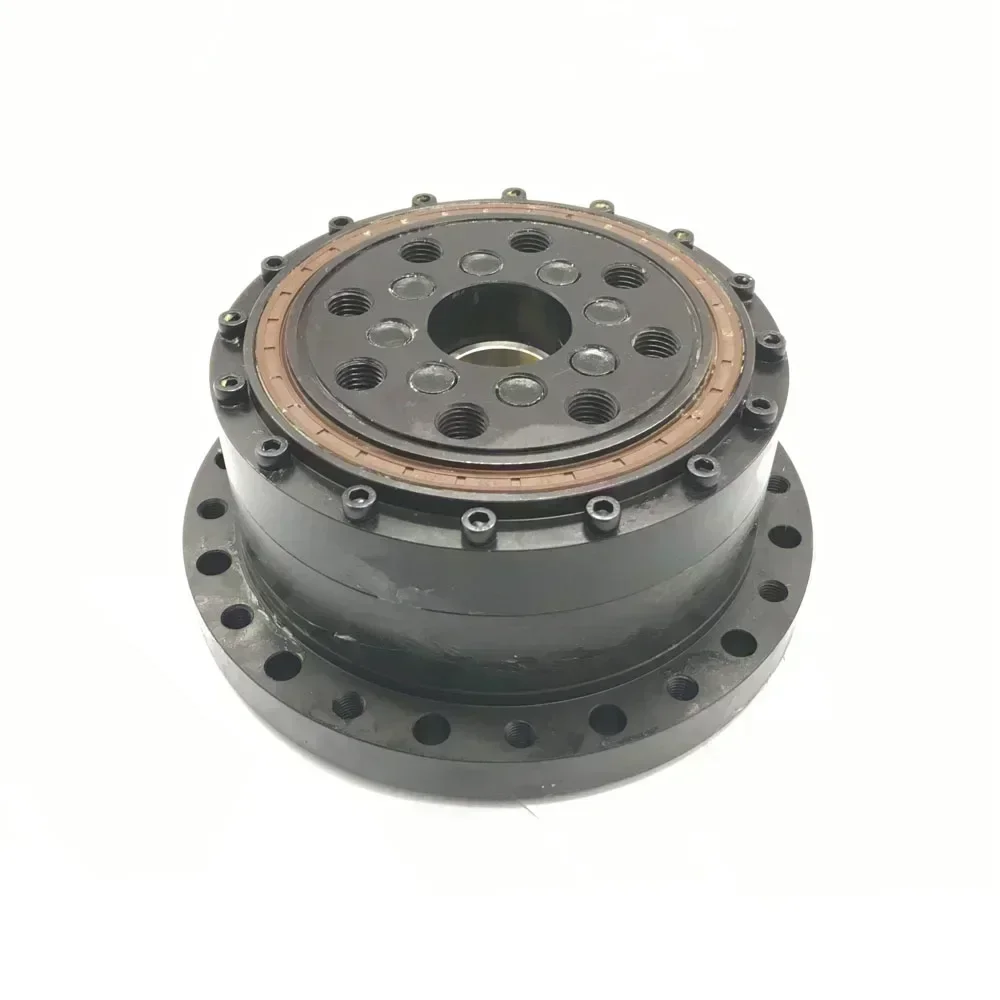

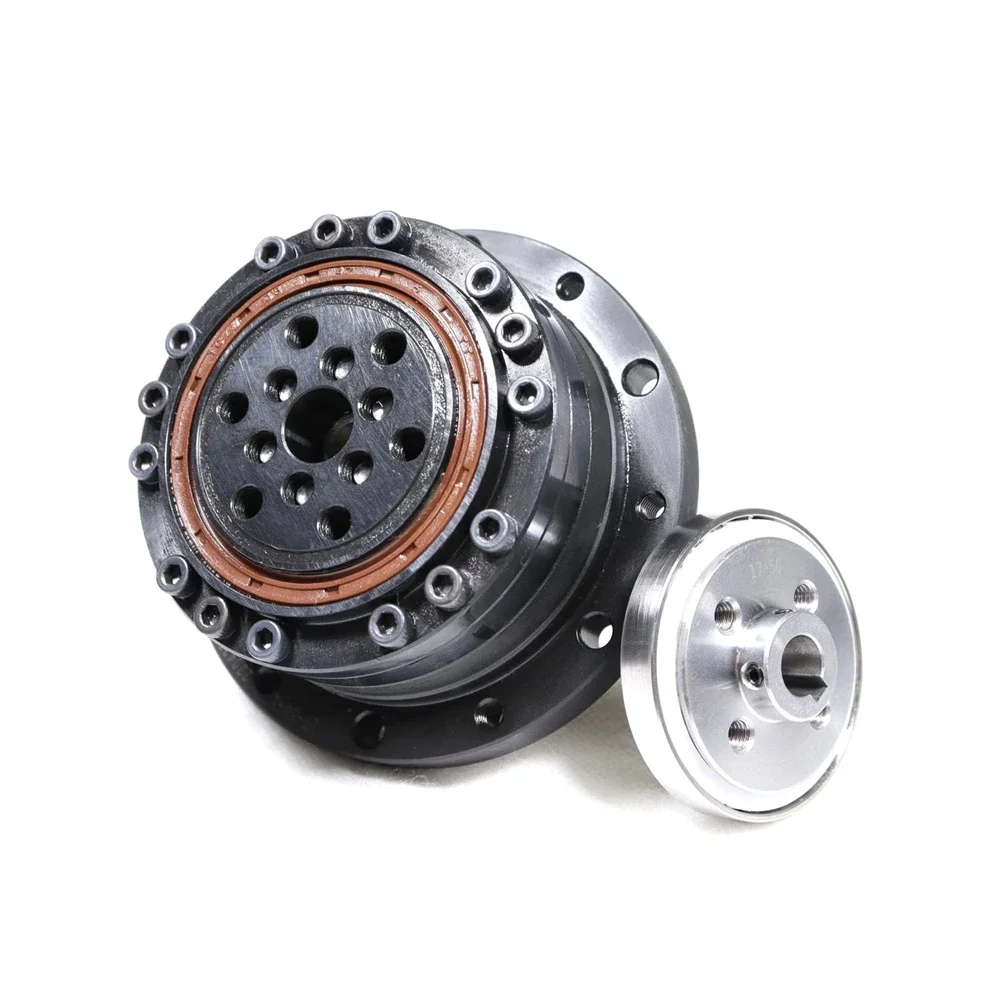

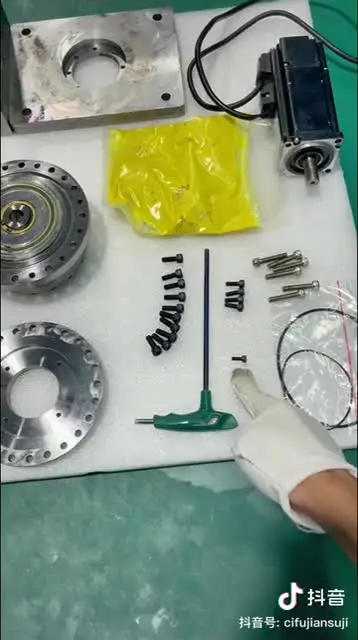

1Pcs *Harmonic Drive
1Pcs *Motor Flange Plate

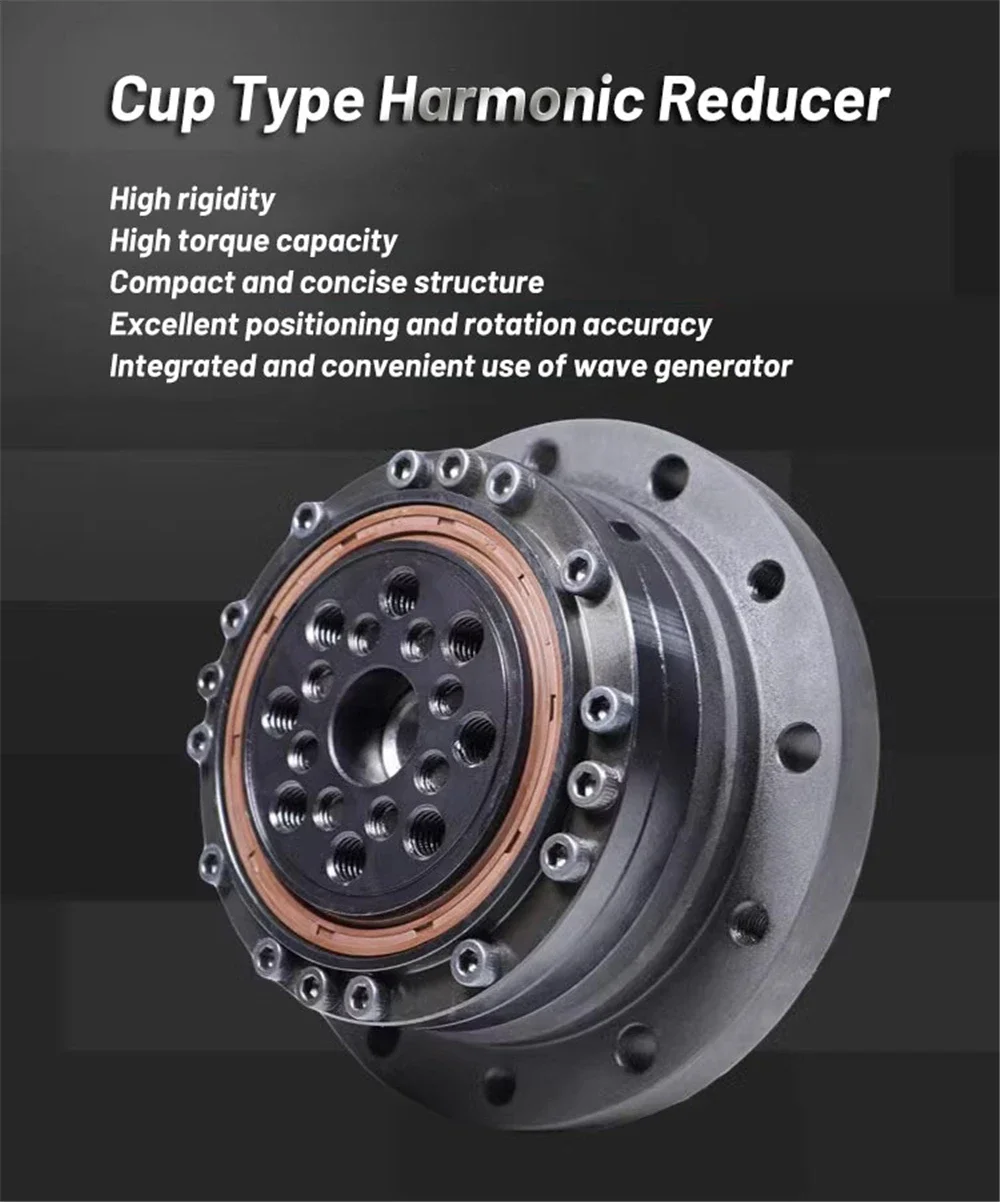

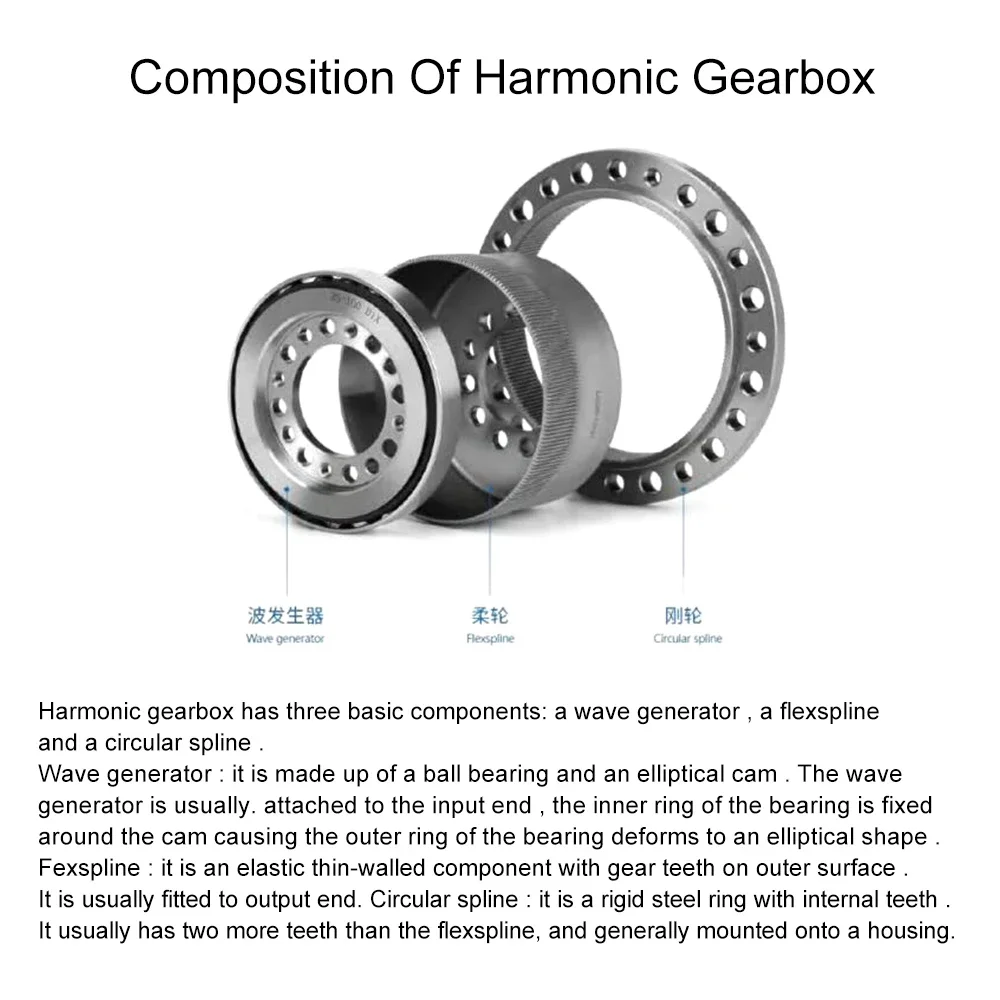

Characteristics of harmonic drive:
1. High accuracy: Multiple teeth mesh simultaneously in two 180 degree symmetrical positions, so the influence of gear pitch error and accumulated pitch error on rotational accuracy is relatively average,
Can achieve extremely high positional and rotational accuracy.
2. Large transmission ratio: The transmission ratio of single stage harmonic gear transmission can reach i=30~500, and the structure is simple. Three basic components on the same axis can achieve high reduction ratio.
3. High load-bearing capacity: In harmonic transmission, the meshing between teeth is surface contact, and the number of teeth engaged simultaneously is relatively large, resulting in a small unit area load and higher load-bearing capacity compared to other transmission forms.
4. Small size and light weight: Compared to ordinary gear devices, the volume and weight can be significantly reduced, achieving miniaturization and lightweight.
5. High transmission efficiency and long service life.
6. Smooth transmission, no impact, and low noise.
Scope of application:
Used in various precision motion occasions, such as robotic arm joints, robots, machine tool CNC rotary tables, laser
marking machines, dispensing machines, rotary testing tables, optical testing tables, high-precision gear direct drive, fourth
axis, indexing head, military radar, printing machinery, paper machinery, tape making machinery, papermaking machinery,
wire and cable machinery, winding machinery, cable machinery, woodworking machinery, testing equipment, simulated
loads Equipment in fields such as automation, measurement, and testing that require high accuracy.
