Датчик температуры и влажности DHT11/DHT22/AM2301/AM2302 Stlxy

Цифровой датчик температуры и влажности DHT11 DHT22 AM2301, датчик температуры...

4.8

Цена: 38 — 269 ₽
В избранное
В корзину Купить на AliExpress (цена могла измениться)
#0 #1 #2 #3 #4 #5

Характеристики

  • Название бренда:Stlxy
  • Номер модели:Digital Temperature and Humidity Sensor DHT11 DHT22 AM2302B AM2301 AM2
  • Происхождение:Китай
  • Тип:K
  • Назначение:В помещении
  • Основы:Температурный датчик
  • Стиль:Стоячие и настенные подвесные
  • Диагональ экрана:1.9 Дюйм(ов) и ниже
  • Тип питания:Нет
  • Длина кабеля:1м
  • Максимальная температура измерения:50 ° C-69 ° C
  • Измерьте Тип:J
  • Единица измерения:штука/штуки
  • Количество:1
  • Аккумулятор входит в комплект:Нет

Отзывы

  • 1.0
    Kairat N. 28 декабря 2024

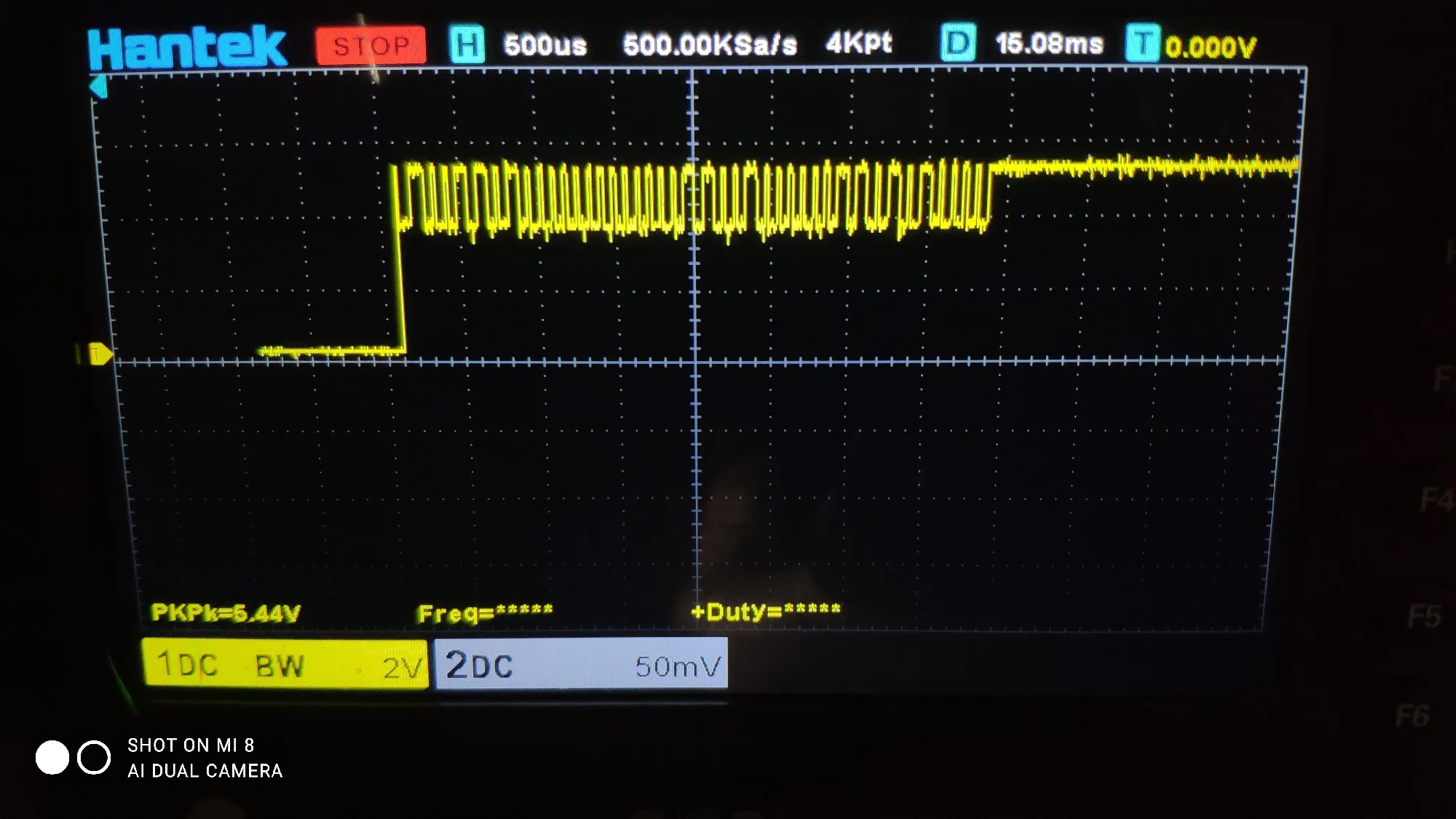

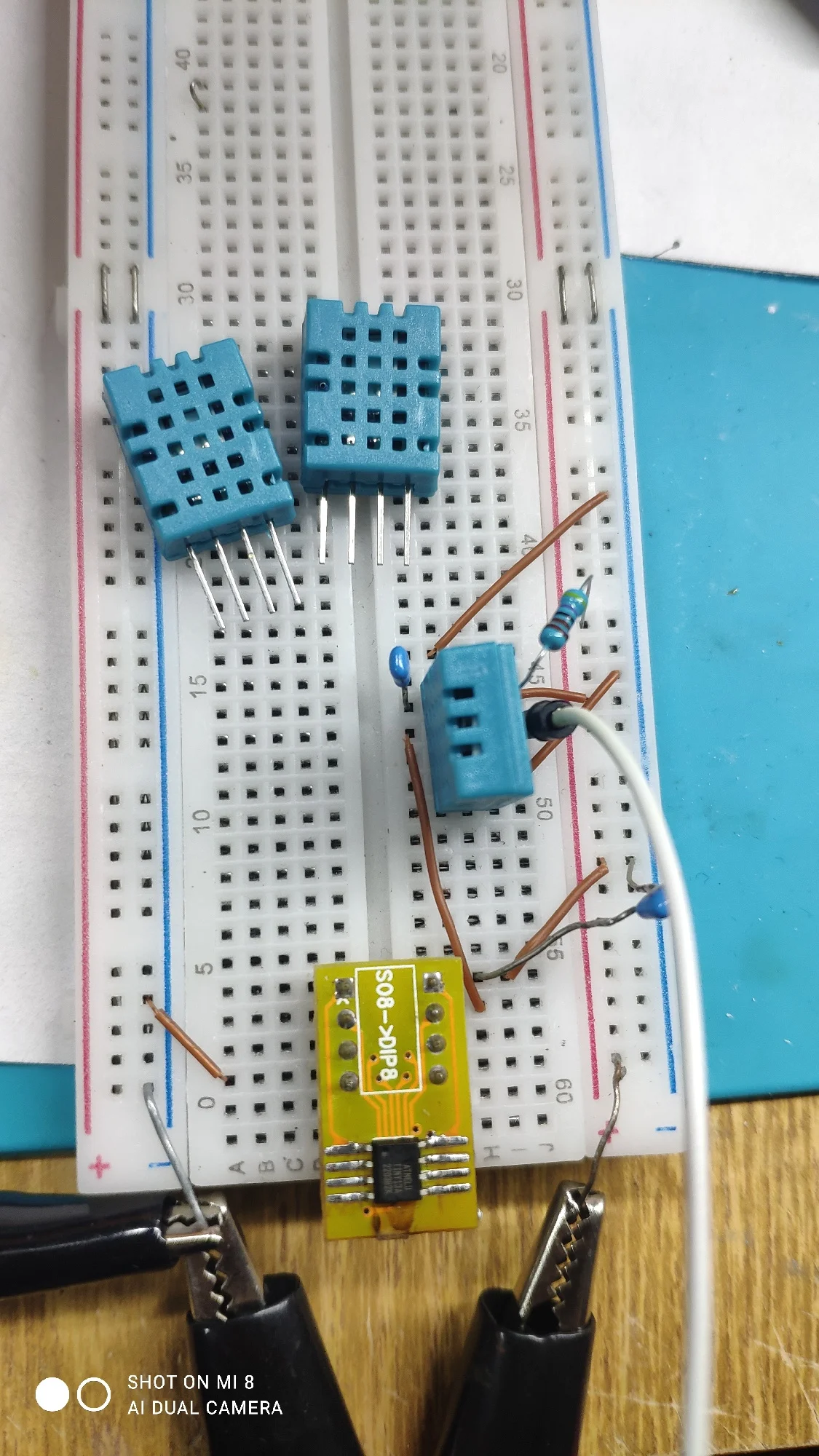

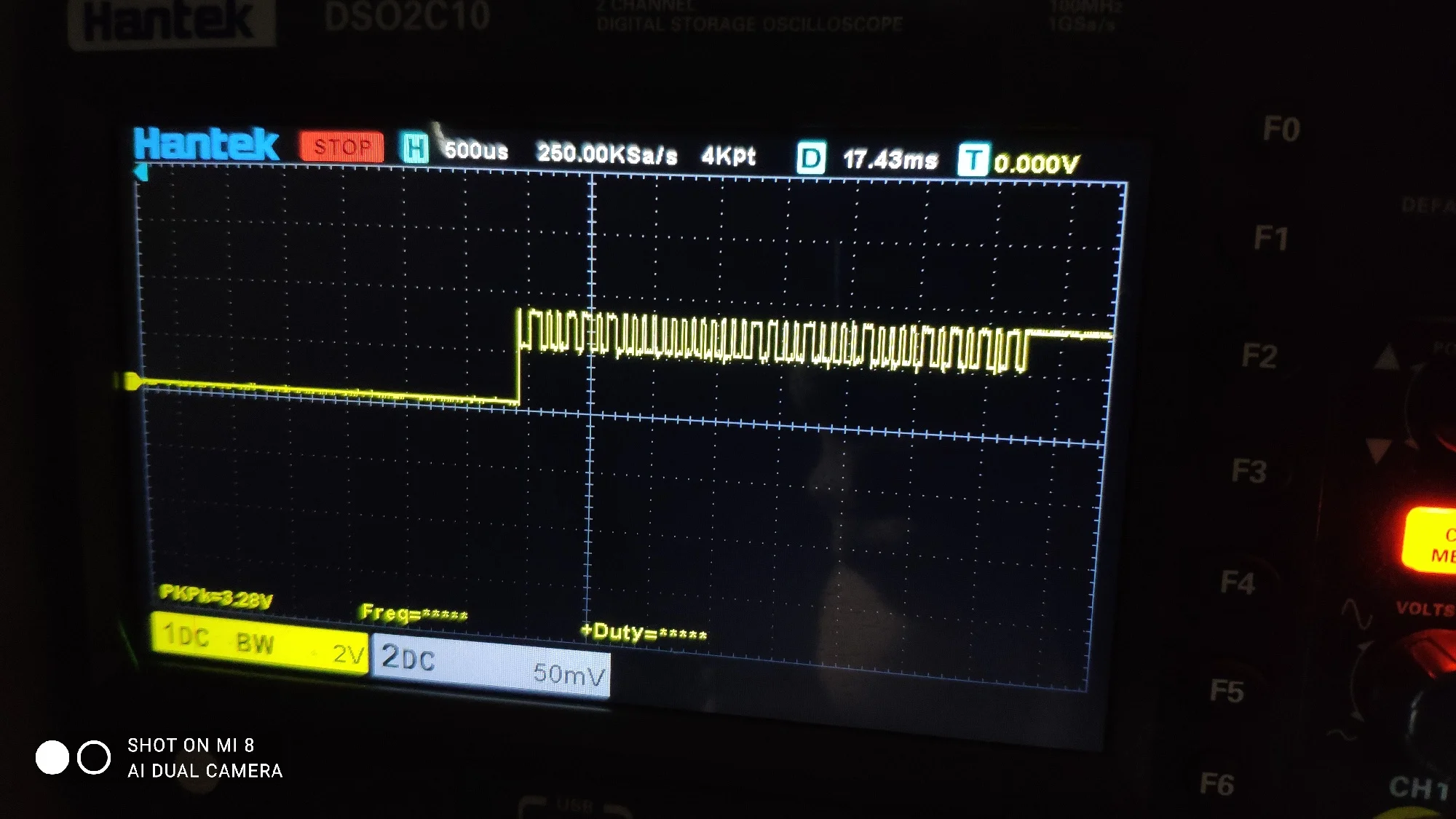

    Потенциал логического нуля не равен земле. Притом все три работают так же. В интернете осциллограммы глянул, там у людей нормальный уровень.
  • 4.0
    Andrey H. 23 февраля 2025

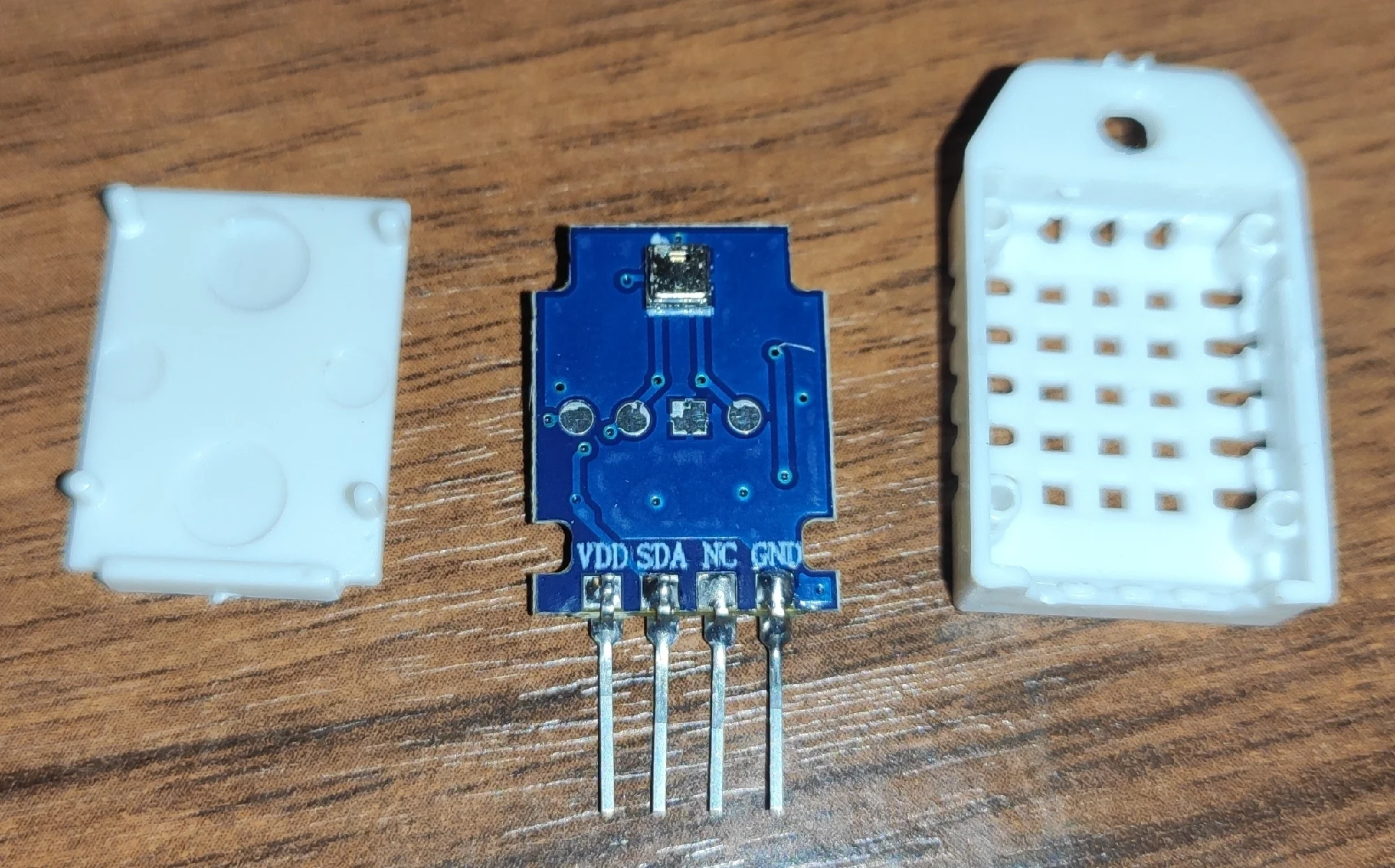

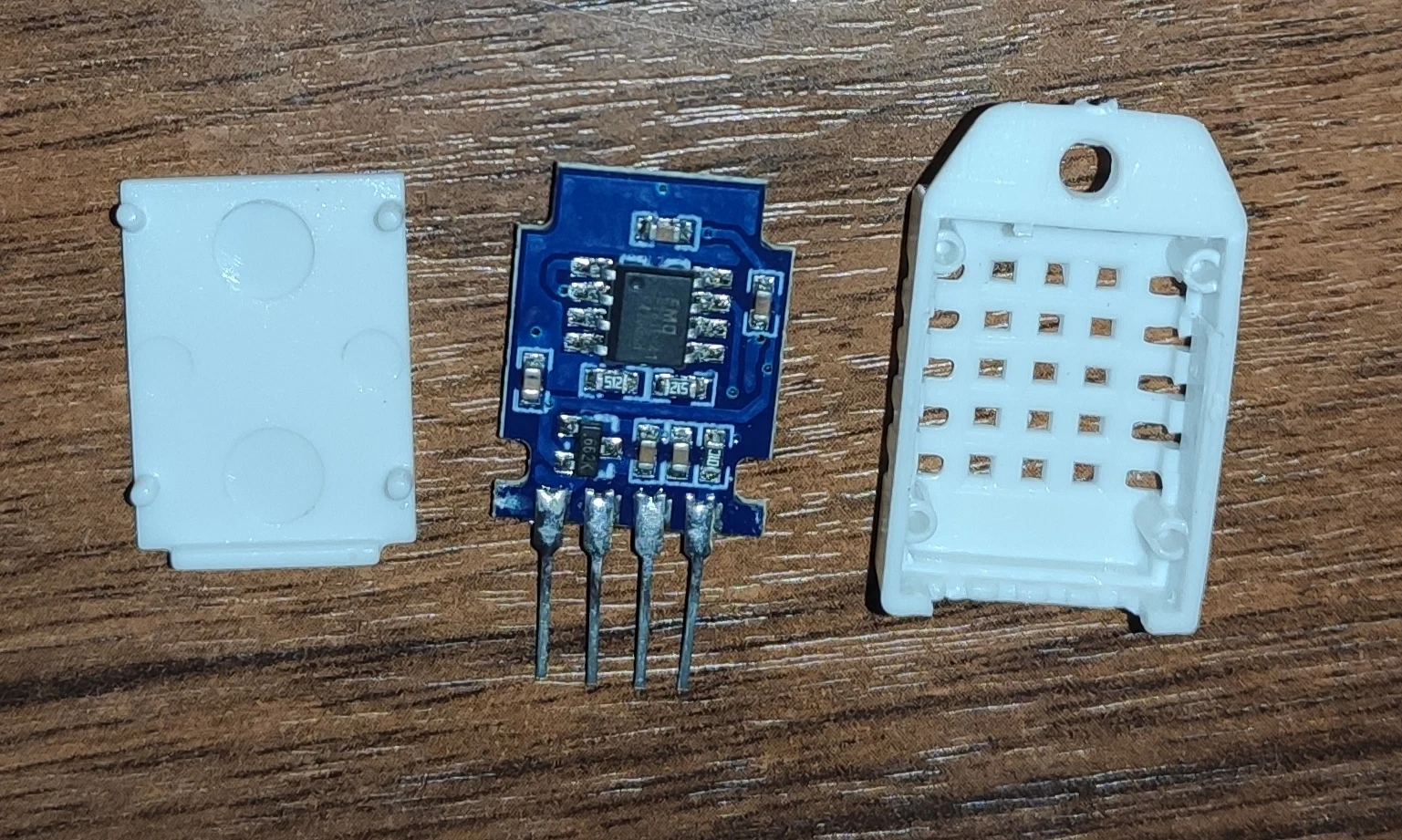

    Странно, вообще ничего общего с DTH22, который я покупал несколько лет назад. Ножки тонюсенькие, только под пайку. Ну ОК пока, посмотрим как будет работать.

Описание

DHT11:
         The DHT11 digital temperature and humidity sensor is a temperature and humidity composite sensor with a calibrated digital signal output. It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. The sensor consists of a resistive wet sensor and an NTC temperature sensor connected to a high performance 8-bit microcontroller. Therefore,the product has the advantages of excellent quality,ultra-fast response,strong anti-interference ability and high cost performance. Each DHT11 sensor is calibrated in an extremely accurate humidity calibration chamber. The calibration coefficients are stored in the OTP memory as a program,and these calibration coefficients are called internally during the processing of the detection signal. The single-wire serial interface makes system integration easy and fast. Ultra-small size,extremely low power consumption,and signal transmission distances of up to 20 meters make it the best choice for even the most demanding applications. The product is available in a 4-pin single-row lead package.
Product Features:

  • Relative humidity and temperature measurement

  • All calibration,digital output

  • Excellent long-term stability

  • No extra parts required

  • Extra long signal transmission distance

  • Ultra low energy consumption

  • 4-pin mounting

  • Completely interchangeable

  • DHT22:

    Product parameters:

    • Humidity measurement range: 0% to 99.9% (0°C-50°C range)

    • Humidity measurement error: ±2%

    • Temperature measurement range: -40 ° C ~ 80 ° C

    • Temperature measurement error: ±0.5°C max ±1°C

    • Resolution: 16 bits

    • Sampling period: 2s

    • Working voltage: 3V--5.5V

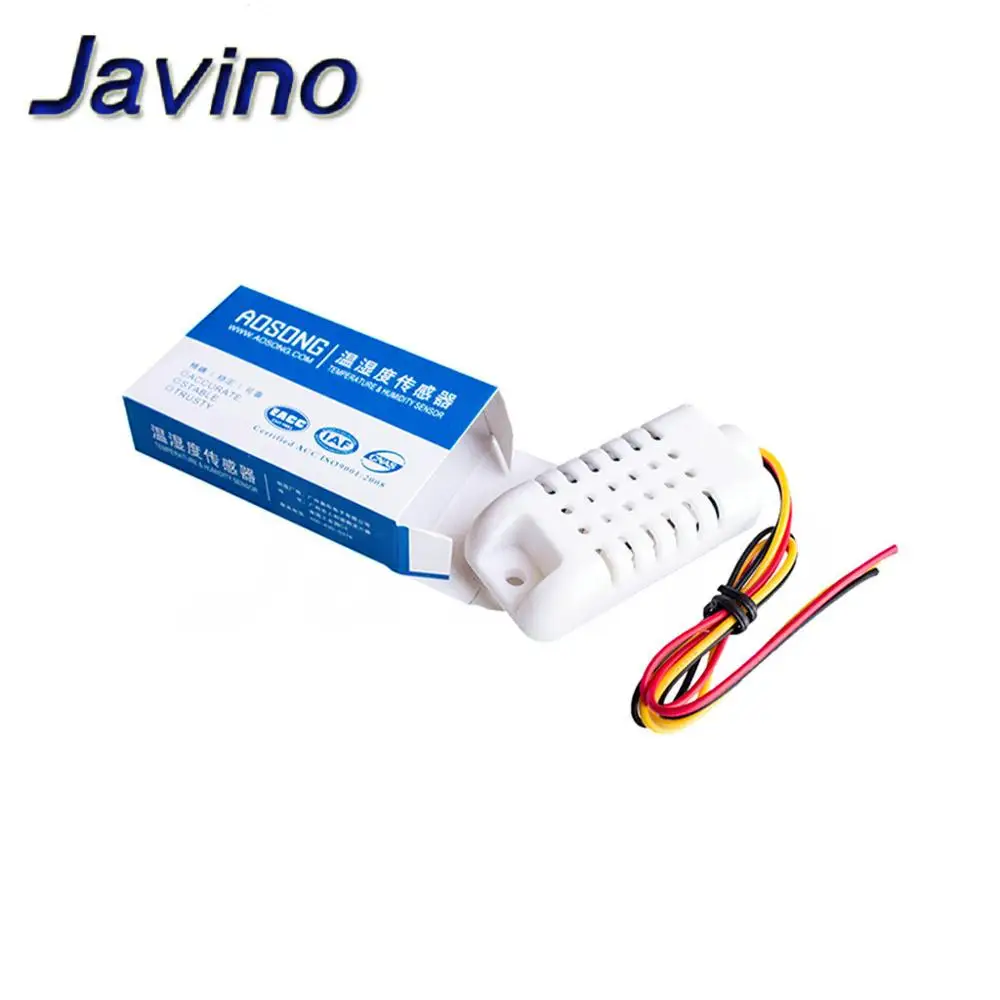

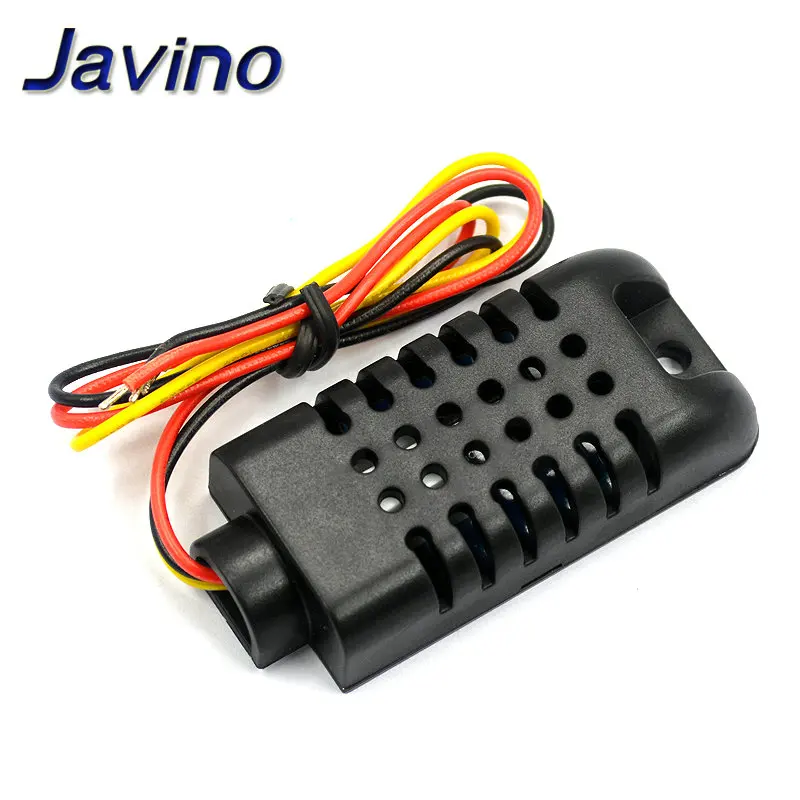

    • AM2301:

      Product Features:
         The AM2301 Humidity Capacitance Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with a calibrated digital signal output. It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. Therefore,the product has the advantages of excellent quality,fast response,strong anti-interference ability and high cost performance. Each sensor is calibrated in a precision humidity calibration chamber. The calibration coefficients are stored in the OTP memory as a program,and these calibration coefficients are called internally during the processing of the detection signal. The sensor consists of a capacitive sensing element and an NTC temperature measuring element connected to a high performance 8-bit microcontroller. Communication with the microprocessor via a single bus requires only one line,40 bits of data at a time,high first out. Small size,low power consumption,long communication distance,can be used in demanding applications.
      Product parameters:

      • Humidity measurement range: 0% to 99.9% (0°C-50°C range)

      • Humidity measurement error: ±3%

      • Temperature measurement range: -40 ° C ~ 80 ° C

      • Temperature measurement error: ±0.3 °C

      • Resolution: 16 bits

      • Sampling period: 2s

      • AM2302B:


        Product parameters:

        • Temperature range: -40~80°C

        • Humidity range: 0~99.9%RH

        • Temperature detection accuracy: ±0.5 °C

        • Humidity detection accuracy: ±2% RH

        • Resolution: 0.1 ° C; 0.1% RH

        • Sampling period: 2s

        • Output signal: digital signal single bus

        • Supply voltage: DC3.3~5.5V

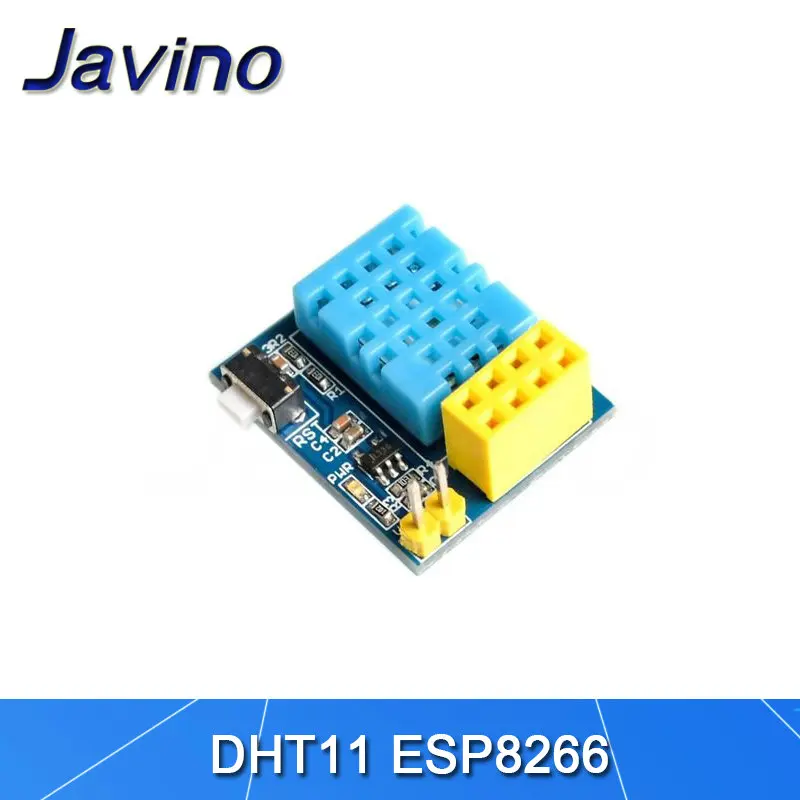

      ESP8266 ESP-01 ESP-01S DHT11 Temperature and Humidity WiFi Node Without Wireless Module U40 For Arduino

      • Description:
        This module uses ESP8266-01 / ESP-01S as the main control,and DHT11 is the temperature and humidity sensor. ESP8266 collects the temperature and humidity in the collected environment and uploads it to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.
        Characteristic:
        * Master control: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S)
        * Temperature and humidity sensor: DHT11
        * Working voltage: DC 3.7V-12V (support 3.7v lithium battery power supply)
        * Measuring range: 20-90% RH 0-50 ° C
        * Measurement accuracy: temperature: ± 2 ° C,humidity ± 5% RH
        Application example:
        1. Power supply: 3.7V-12V DC power connected to VCC GND (2.54mm pin header)
        2. Download the program to ESP-01S (this connection does not include this wireless module)
        3. Insert ESP-01 / ESP-01S (this connection does not include this wireless module) into the 2 * 4 Pin header (in the direction of the arrow)
